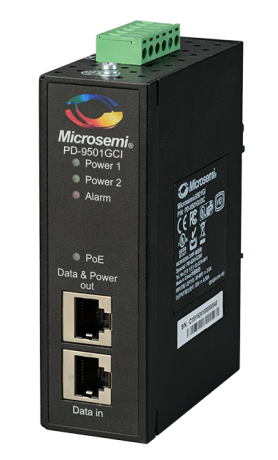

product primary image

PD-9501GCI

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The single-port PoE midspan is a high-power solution for remote powering of current and emerging high-power indoor applications. Generating 60W, the PD-9501GCI enables remote power for a new range of applications including wireless access points, Pan-Tilt Zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100/1000Base-T network devices and 1000BaseT devices such as wireless IEEE wireless access points.

Additional Features
  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: DC
  • Industrial rated: IP30
  • Regulatory compliance: IEEE 802.3bt (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class A, EN50532 Class A (emissions), EN55024 (immunity)
  • Safety: UL 508
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-31
  • Vibration: IEC 60068-2-6
  • Compact design
Parametrics
Name
Value
Product Type
60W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3bt
Power Per Port
60W
Operating Environment
Industrial
Number of Ports
1
Data Rate
1 Gbps
Input Power
DC
Operating Temperature (°C)
-40 to 75
Warranty (Years)
1

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9501GCI/DC
422.0000
2.787000
N/A
N/A
225x180x160mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
