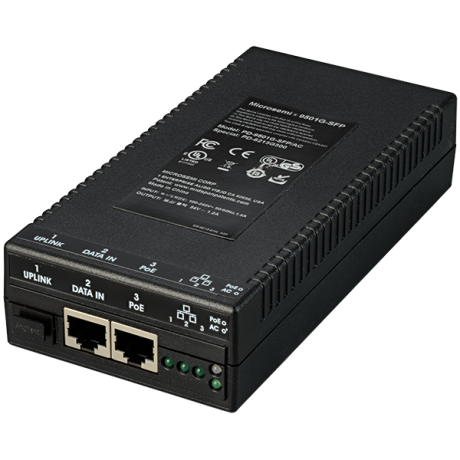

PD-9501G/SFP

1 port, 60W, IEEE 802.3at-compliant PoE media converter to extend existing network distance with fiber cabling

Status: In Production

Features:

  • Number of ports: 1 PoE ports + 1 SFP input port
  • PoE output: 60W
  • Data rates: SFP - 1000 mbps modules, Copper - 10/100/1000 mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, EK (Europe and UK), BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

A single port media converter with PoE functionality. Data input can be through SFP module or through the RJ45 port, while the output will be data and power up to 60 Watts. The media converter offers a unique solution to powering long range installations, where the data input comes over fiber. Standard SFP modules can be used (SM or MM modules). The 9501G/SFP complies with IEEE 802.3at and will provide PoE after detection. The PoE port will provide the power level needed by the end device, offering a safe solution for all types of applications starting with 802.3af loads and up to 802.3at 4-pairs loads.

Additional Features
  • Number of ports: 1 PoE ports + 1 SFP input port
  • PoE output: 60W
  • Data rates: SFP - 1000 mbps modules, Copper - 10/100/1000 mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, EK (Europe and UK), BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety: UL/EN/IEC 60950-1
  • Compact design
Parametrics
Name
Value
Product Type
60W PoE
PoE Systems Type
Midspan
Power Per Port
60W
Operating Environment
Indoor
Number of Ports
1
Data Rate
1G
Input Power
AC
Operating Humidity (%)
95
Operating Temperature (°C)
-10 to 45
Warranty (Years)
1

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9501G-SFP/AC
400.0000
620.0000
N/A
N/A
443x223x154mm
N/A
N/A
PD-9501G-SFP/AC-AU
580.0000
800.0000
N/A
N/A
443x223x154mm
N/A
N/A
PD-9501G-SFP/AC-BR
580.0000
800.0000
N/A
N/A
443x223x154mm
N/A
N/A
PD-9501G-SFP/AC-EU
580.0000
800.0000
N/A
N/A
443x223x154mm
N/A
N/A
PD-9501G-SFP/AC-JP
580.0000
800.0000
N/A
N/A
443x223x154mm
N/A
N/A
PD-9501G-SFP/AC-UK
580.0000
800.0000
N/A
N/A
443x223x154mm
N/A
N/A
PD-9501G-SFP/AC-US
580.0000
800.0000
N/A
N/A
443x223x154mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
