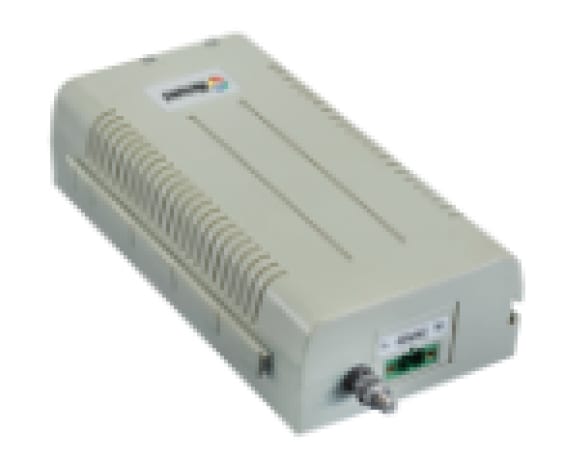

PD-9501G

1 port, 60W, IEEE 802.3at compliant indoor PoE midspan

Status: In Production

Features:

  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: DC
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of devices in 48VDC environment as well as high power applications. The PD-9501G is designed specifically to power IEEE 802.11n and IEEE802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end-terminals. It is also backward compatible and safe to use with any 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as WI-MAX and wireless IEEE 802.11n access points. With the midspan’s plug-and-play installation, they are easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing flexibility to assurance a future-proof scalable network.

Additional Features
  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: DC
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity)
  • Safety: GS Mark Per IEC60950
  • Compact design
Parametrics
Name
Value
Product Type
60W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
60W
Operating Environment
Indoor
Number of Ports
1
Data Rate
1 Gbps
Input Power
DC
Operating Humidity (%)
90
Operating Temperature (°C)
-20 to 40
Warranty (Years)
1

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9501G/24AC
430.0000
570.0000
N/A
N/A
495x495x227mm
N/A
N/A
PD-9501G/24VDC
430.0000
570.0000
N/A
N/A
495x495x227mm
N/A
N/A
PD-9501G/48VDC
430.0000
570.0000
N/A
N/A
495x495x227mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
