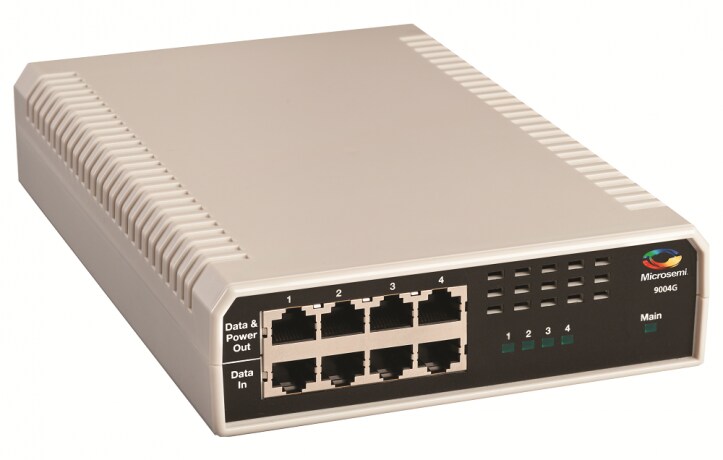

product primary image

PD-9004G

4 ports, 30W, IEEE 802.3at-compliant indoor PoE midspan

Status: In Production

Features:

  • Number of ports: 4
  • PoE output: 30W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The four ports PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution to upgrade existing infrastructure with PoE, ensuring safe operation of any standard PoE data terminal. The PD-9004G is an ideal solution for powering and controlling up to 4 remote devices, including wireless LAN access points, security network cameras and IP phones without any changes to the installed network infrastructure.

Additional Features
  • Number of ports: 4
  • PoE output: 30W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety: UL/cUL Per EN 60950, GS Mark Per EN 60950
  • Compact design
Parametrics
Name
Value
Product Type
30W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
30W
Operating Environment
Indoor
Number of Ports
4
Data Rate
1 Gbps
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
0 to 40
Warranty (Years)
1

Documents

Jump to:

Data Sheets


747KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9004G/AC
640.0000
880.0000
N/A
N/A
642x495x329mm
N/A
N/A
PD-9004G/AC-AU
820.0000
1080.000
N/A
N/A
642x495x329mm
N/A
N/A
PD-9004G/AC-EU
820.0000
1080.000
N/A
N/A
642x495x329mm
N/A
N/A
PD-9004G/AC-JP
820.0000
1080.000
N/A
N/A
642x495x329mm
N/A
N/A
PD-9004G/AC-UK
820.0000
1080.000
N/A
N/A
642x495x329mm
N/A
N/A
PD-9004G/AC-US
820.0000
1080.000
N/A
N/A
642x495x329mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
