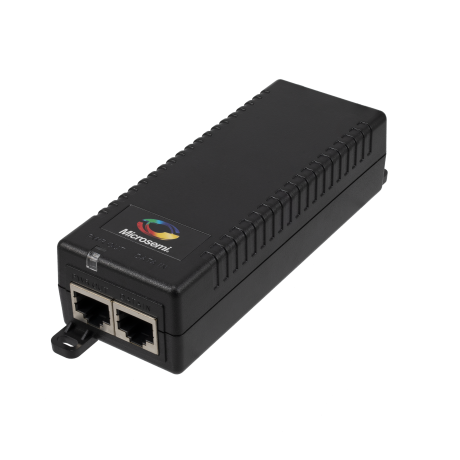

product primary image

PD-9001GC

1 port, 30W, IEEE 802.3at-compliant indoor PoE midspan

Status: Samples Available

Features:

  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, EK (Europe and UK), BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant  solution for powering IP phones, WLAN access points, network cameras and other IP terminal devices. The PD-9001GC supports data rates up to 1000Base-T, and can be used to deliver remote power and data to PoE compatible devices such as Wi-Fi access points, IP cameras, access control, IP phones etc.

Additional Features
  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, EK (Europe and UK), BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55032 Class B, EN 55024, VCCI
  • Safety: UL/EN/IEC 60950-1 (Ed.2)
  • Compact design
Parametrics
Name
Value
Product Type
30W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
30W
Operating Environment
Indoor
Number of Ports
1
Data Rate
1G
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
-10 to 40
Warranty (Years)
1

Documentation data is currently unavailable.


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9001GC/AC
171.0000
281.0000
N/A
N/A
495x320x230mm
N/A
N/A
PD-9001GC/AC-EU
350.0000
421.0000
N/A
N/A
495x320x230mm
N/A
N/A
PD-9001GC/AC-JP
350.0000
421.0000
N/A
N/A
495x320x230mm
N/A
N/A
PD-9001GC/AC-UK
350.0000
421.0000
N/A
N/A
495x320x230mm
N/A
N/A
PD-9001GC/AC-US
350.0000
421.0000
N/A
N/A
495x320x230mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
