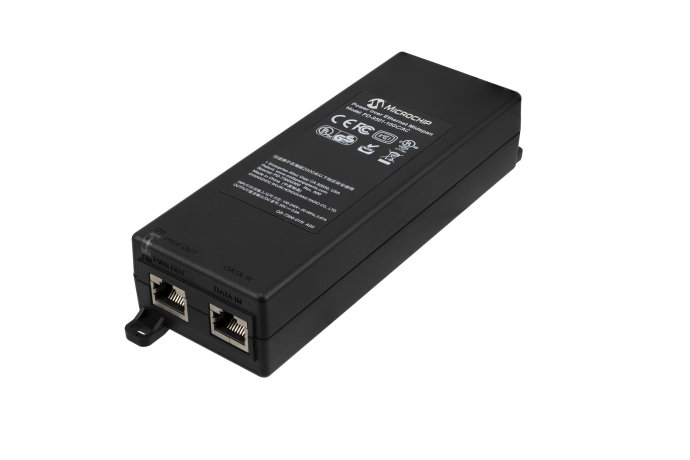

PD-9001-10GC

1 port, 30W, IEEE 802.3at-compliant indoor PoE midspan with 10G

Status: Samples Available

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power indoor applications. The PD-9001-10GC enables remote power for a new range of applications including 802.11ac access points, pan-tilt-zoom (PTZ) cameras and videophones. It is backward compatible to IEEE 802.3af PoE standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10G devices such as wireless IEEE 802.11ac access points.

Additional Features
  • Number of ports: 1
  • PoE output: 30W
  • Data rates: 10/100/1000 Mbps & 10G
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety: UL/EN/IEC 60950-1 (Ed.2)
  • Compact design
Parametrics
Name
Value
Product Type
30W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
30W
Operating Environment
Indoor
Number of Ports
1
Data Rate
10 GbE
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
-10 to 40
Warranty (Years)
1

Documentation data is currently unavailable.


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9001-10GC/AC
220.0000
440.0000
N/A
N/A
319x269x238mm
N/A
N/A
PD-9001-10GC/AC-EU
400.0000
620.0000
N/A
N/A
319x269x238mm
N/A
N/A
PD-9001-10GC/AC-JP
400.0000
620.0000
N/A
N/A
319x269x238mm
N/A
N/A
PD-9001-10GC/AC-UK
400.0000
620.0000
N/A
N/A
319x269x238mm
N/A
N/A
PD-9001-10GC/AC-US
400.0000
620.0000
N/A
N/A
319x269x238mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
