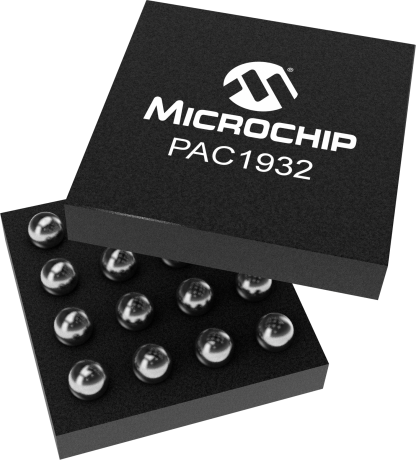

product primary image

PAC1932

Dual DC Power Monitor with Accumulation

Status: In Production

Features:

  • 100 mV full scale range for current sense voltage
  • Selectable bidirectional measurement capability
  • 0 to 32V Input Common-Mode Voltage
  • 1% Power Measurement Accuracy Over a Wide Dynamic Range
  • On-Chip Accumulation of 28-bit Power Results for Energy Measurement
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The PAC1932 is a dual power monitor and energy monitor that reports on bus voltage and sense voltage 16-bits of resolution.  Power is reported as a simultaneous product of two 16-bit independent bus and sense voltages.  All registers are accessible through I2C / SMBus including an 8 sample average for reading stability.

Additional Features
  • Dual High-Side Current Sensor
    • 100 mV full scale range for current sense voltage
    • Selectable bidirectional measurement capability
    • External sense resistor sets full scale current range
    • 0 to 32V Input Common-Mode Voltage
    • 1% Power Measurement Accuracy Over a Wide Dynamic Range
    • On-Chip Accumulation of 28-bit Power Results for Energy Measurement
    • 48-bit power accumulator register
    • Sampling rates of 8, 64, 256, and 1024 samples per second
    • At least 17 minutes of power accumulation data at 1024 samples per second
  • 2.7V to 5.5V Supply Operation
    • Separate VDD for I/O pin
    • 1.62-5.5 capable SMBus and digital I/O
    • SMBus 3.0 and I2C Fast Mode Plus
Parametrics
Name
Value
# Current Sensors
2
Description
Dual DC Power Sensor
Full Scale Range (mV)
100
Current Measuerment Max Accr (%)
0.9
Effective Sampling Interval min to max (msec)
0.98 to 125
Bus Voltage Range (V)
0 to +32
# Temperature Monitors (ambient, remote)
N/A
Temperature Accuracy Typ / Max (°C)
N/A
Alert/Therm
1
Peak Detection
N/A
Interface
SMBus/I2C
Address Select
yes

Documents

Jump to:

Brochures

Software

White Papers

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
PAC1934 4 Ch DC Power Monitor Eval Board
PAC1934 4 Ch DC Power Monitor Eval Board ( ADM00805 )

This board enables easy connection of the PAC1934 to power sources and loads for power monitoring and energy metering. On-board current sense resistors for high side current sensing. It has USB connection to PC for power and data, or you may use I2C direct connection to your digital controller. On board square wave current generator for demo purposes. GUI available, detailed User's Guide.

Learn More
Add To Cart

Similar Devices

Product
Description
Full Scale Range (mV)
Bus Voltage Range (V)
Price 5K
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.76
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.65
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.85
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24

Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$1.03
Current/DC Power Sensor
10, 20, 40, 80
0 to +40
$0.56
Dual Current/DC Power Sensor
10, 20, 40, 80
0 to +40
$0.79
Current/DC Power Sensor
100
0 to +32
$0.67
Dual DC Power Sensor
100
0 to +32
$0.79
Triple DC Power Monitor with Accumulation
100
0 to +32
$0.96
Quad DC Power sensor wtih Accumulator
100
0 to +32
$1.12

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PAC1932T-I/JQ
0.022500
0.181818
16
UQFN
4x4x0.5mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
