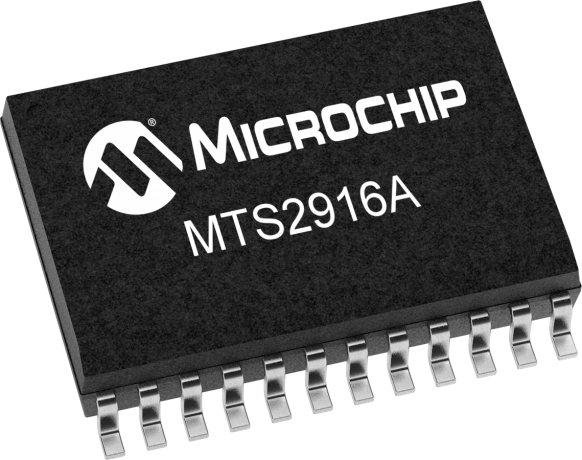

The MTS2916A motor driver is an integrated circuit able to drive both windings of a bipolar stepper motor or bi-directionally control two DC motors. The two output bridges can sustain 40V and deliver up to 750mA of continuous current each. The maximum output current, controlled by a PWM circuit, is determined by the user’s selection of a reference voltage, a sensing resistor and two logic inputs. The outputs have been optimized for a low output saturation voltage drop.
The MTS2916A Dual Full-Bridge Stepper Motor Driver Evaluation Board demonstrates the capabilities of the MTS2916A to control both windings of a bipolar stepper motor. The board also demonstrates the capabilities of the MTS62C19A, which has the same functionality, but different pin assignments. A PIC16F883 is utilized for motor control processing.
This evaluation board incorporates features...
