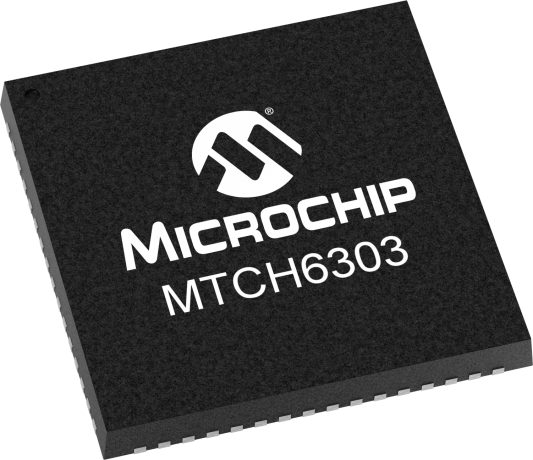

product primary image

MTCH6303

Status: Not Recommended for new designs

Features:

  • Multi-Touch up to 10 touches
  • 5 touches typically at 100Hz+ each
  • 27RX x 19TX channels support approximately 8” touch screens (larger possible)
  • Combines with MTCH652 for superior signal-to-noise ratio (SNR)
  • Integrated single and multi-finger gesture recognition suite including taps, swipes, scrolling, and pinching and zooming
  • Advanced DSP processing provides noise avoidance techniques
  • USB & I2C communication
  • Supports 3D gestures up to 20cm when combined with the MGC3130 GestIC® controller
  • 27RX 19TX Sensor
  • 27 mA full-scan rate
  • 1 mA reduced-scan rate
  • Touch screen designs that need cost effective, easy to integrate, fast time to market PCap touch solutions
  • Perfect for touch screens over displays, control panels, keypads, and many other input devices
  • Targeting the Industrial, Medical, Home & Office Automation, and Consumer markets among others
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

Microchip offers a wide portfolio of capacitive touch controllers. The maXTouch portfolio covers solutions for all touch surfaces and touch screens up to 24” diagonal size.



Additional Features
      Features
      • Multi-Touch up to 10 touches
      • 5 touches typically at 100Hz+ each
      • 27RX x 19TX channels support approximately 8” touch screens (larger possible)
      • Combines with MTCH652 for superior signal-to-noise ratio (SNR)
      • Integrated single and multi-finger gesture recognition suite including taps, swipes, scrolling, and pinching and zooming
      • Advanced DSP processing provides noise avoidance techniques
      • USB & I2C communication
      • Supports 3D gestures up to 20cm when combined with the MGC3130 GestIC® controller
        Power Management Example
        • 27RX 19TX Sensor
          • 27 mA full-scan rate
          • 1 mA reduced-scan rate
          Applications
          • Touch screen designs that need cost effective, easy to integrate, fast time to market PCap touch solutions
          • Perfect for touch screens over displays, control panels, keypads, and many other input devices
          • Targeting the Industrial, Medical, Home & Office Automation, and Consumer markets among others
    Parametrics
    Name
    Value
    Product Type
    Projected Capacitive Controller
    Input Channels
    27
    Measurement Principle
    Self/Mutual Capacitance
    Report Rate (pps)
    100
    Number of Touches
    10
    Position Resolution
    16-bit
    Features
    Gestures, USB or I2C comm., 27RX and 19TX channels supported
    Voltage Range
    2.60V - 3.60V

    Documents

    Jump to:
    ×

    Data Sheets

    MTCH6303 Multi-Touch Projected Capacitive Touch Controller Product Brief

    194KB
    MTCH6303 Projected Capacitive Touch Controller Data Sheet

    990KB

    Supporting Collateral

    Collateral documents for devices

    5B

    Software Libraries/Firmware

    MTCH6303 Software Utility V1.2.1

    21092KB

    User Guides

    EpicIO PCAP 8" Touch Panel TXP080B002

    209KB

    Development Environment

    • Integrated Development Environments
    • Compilers
    • Production Programmers
    • Demo & Evaluation Boards
    Integrated Development Environments
    MPLAB-X-IDE
    MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

    MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
    MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

    ...

    Learn More
    Compilers
    MPLAB-XC32
    MPLAB XC32 Compiler ( MPLAB-XC32 )

    Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

    MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
    MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital Signal...

    Learn More
    Production Programmers
    MPLAB PM3 Universal Device Programmer
    MPLAB PM3 Universal Device Programmer ( DV007004 )

    MPLAB® PM3 Universal Device Programmer no longer supports all PIC MCU devices. To see if your device is supported, input your device part number here: https://www.microchip.com/wwwproducts/DevTool/

    Alternate products to use for production programming for all PIC devices are:

    • MPLAB ICD 4 (DV164045)
    • MPLAB PICkit 4
    ...

    • Socket: AC164327   PartNo: MTCH6303 (64PT)
    Learn More
    Add To Cart
    Demo & Evaluation Boards
    PCAP with 3D Gest IC(R) Sensing Development Kit
    PCAP with 3D Gest IC(R) Sensing Development Kit ( DV102014 )

    Learn More
    Add To Cart

    Similar Devices

    Product
    Product Type
    Price 5K
    Notes
    MTCH652
    Projected Capacitive Driver
    $1.20
    High-Voltage Driver w/Built-In Boost
    MTCH6301
    Projected Capacitive Controller
    $2.05
    Multi-Touch
    MTCH6102
    Projected Capacitive Controller
    $1.06
    Low Power
    MTCH6303
    Projected Capacitive Controller
    $2.72
    Large Sensor Support

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (Kg)
    Lead Count
    Package Type
    Package Dimension
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    MTCH6303T-I/RG
    0.000000
    0.370303
    64
    QFN
    9x9x0.9mm
    Matte Tin
    e3
    MTCH6303-I/RG
    0.000000
    0.350000
    64
    QFN
    9x9x0.9mm
    Matte Tin
    e3
    MTCH6303-I/PT
    0.286700
    2.487500
    64
    TQFP
    10x10x1mm
    Matte Tin
    e3
    MTCH6303T-I/PT
    0.286700
    0.574667
    64
    TQFP
    10x10x1mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
