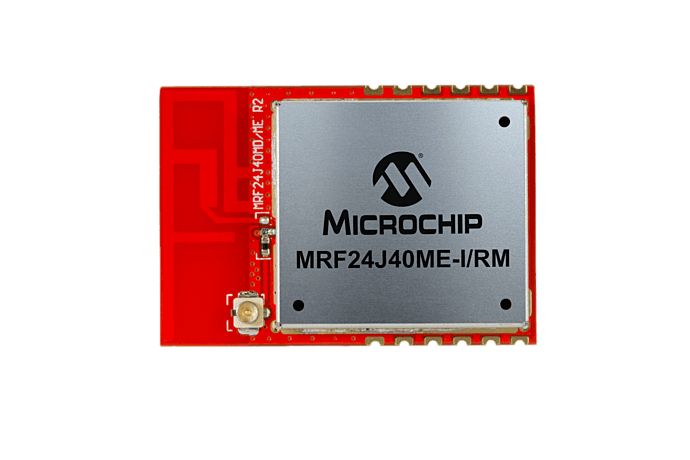

product primary image

MRF24J40ME

Status: In Production

Features:

  • 2.4 GHz IEEE 802.15.4 Transceiver Module
  • Supports ZigBee®, MiWi™, and MiWi P2P protocols
  • Pin Compatible with MRF24J40MB and MRF24J40MC
  • Compliance:
  • Modular Certified for the United States (FCC) and Canada (IC)
  • European R&TTE Directive Assessed Radio Module
  • Australia/New Zealand
  • Compatible with Microchip microcontroller families (PIC16, PIC18, PIC24, dsPIC33 and PIC32)
  • External antenna connector: ultra miniature coaxial (U.FL), 50Ω with simple four-wire SPI interface to PIC® microcontroller
  • Small size: 0.9" x 1.3" (22.9 mm x 33.0 mm), Surface Mountable
  • Integrated Crystal, Internal Voltage Regulator, Matching Circuitry, Power Amplifier, Low Noise Amplifier
  • Easy Integration into Final Product: Minimize Product Development, Quicker Time to Market
  • Integrated PA/LNA - Tx power +19 dBm - Rx sensitivity -104 dBm
  • Hardware CSMA-CA Mechanism, Automatic ACK response
  • Hardware security engine (AES-128)
  • Automatic packet retransmit capable
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

MRF24J40ME is a 2.4 GHz IEEE 802.15.4 radio transceiver module intended for longer range applications.  The MRF24J40ME has an external antenna connector, matching circuitry, and supports the ZigBee®, MiWi™ and MiWi P2P protocols.  The MRF24J40ME module connects to hundreds of PIC® microcontrollers via a 4-wire SPI interface and is an ideal solution for AMR/AMI metering, wireless sensor networks, home automation, building automation and consumer applications.

Additional Features
    • 2.4 GHz IEEE 802.15.4 Transceiver Module
    • Supports ZigBee®, MiWi™, and MiWi P2P protocols
    • Pin Compatible with MRF24J40MB and MRF24J40MC
    • Compliance:
      • Modular Certified for the United States (FCC) and Canada (IC)
      • European R&TTE Directive Assessed Radio Module
      • Australia/New Zealand
    • Compatible with Microchip microcontroller families (PIC16, PIC18, PIC24, dsPIC33 and PIC32)
    • External antenna connector: ultra miniature coaxial (U.FL), 50Ω with simple four-wire SPI interface to PIC® microcontroller
    • Small size: 0.9" x 1.3" (22.9 mm x 33.0 mm), Surface Mountable
    • Integrated Crystal, Internal Voltage Regulator, Matching Circuitry, Power Amplifier, Low Noise Amplifier
    • Easy Integration into Final Product: Minimize Product Development, Quicker Time to Market
    • Integrated PA/LNA - Tx power +19 dBm - Rx sensitivity -104 dBm
    • Hardware CSMA-CA Mechanism, Automatic ACK response
    • Hardware security engine (AES-128)
    • Automatic packet retransmit capable
Parametrics
Name
Value
Type
RF Transceiver Modules
Output Power (dBm)
19.00
Clock
20 MHz
Host Interface
4-Wire SPI
Pin Count
12
RF Module
Yes
RF Transceiver
Yes
Operating Temperature Range
-40 to 85
Frequency Range
2.405-2.475
Input Sensitivity (mVpp)
-104
Rx Input Sensitivity (dB)
-104
RSSI
Yes
TX Current Consumption
77.00
RX Current Consumption
25.00
Sleep Mode Current Consumption
Yes
MAC
Yes
MAC Features
CSMA-CA
Encryption
AES128
Antenna
U.FL Connector
Operating Voltage Range
to

Documents

Jump to:

Data Sheets

Appnote Source Code

Software Libraries/Firmware

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MRF24J40ME PICtail/PICtail Plus Daughter Board
MRF24J40ME PICtail/PICtail Plus Daughter Board ( AC164143-1 )

The MRF24J40ME PICtail™/PICtail Plus Daughter Board is a demonstration and development daughter board for the MRF24J40ME 2.4 GHz IEEE Std. 802.15.4 RF Transceiver Module with PA/LNA and External Antenna Connector

The daughter board can be plugged into multiple Microchip Technology demonstration and development boards. For example, the daughter board is appropriate for...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MRF24J40ME-I/RM
2.500000
7.400000
12
MODULE
Varies
NiAu
e4
MRF24J40MET-I/RM
2.500000
4.171429
12
MODULE
Varies
NiAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
