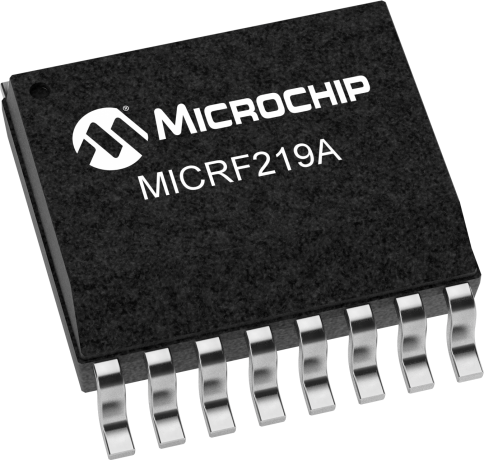

product primary image

MICRF219A

Status: In Production

Features:

  • -110dBm sensitivity at 1kbps with 0.1% BER
  • Auto-polling mode with bit checking
  • Supports bit rates up to 20kbps at 433.92MHz
  • 25dB image-reject mixer
  • No IF filter required
  • 60dB analog RSSI output range
  • 3.0V to 3.6V supply voltage range
  • 4.3mA supply current at 315MHz
  • 6.0mA supply current at 434MHz
  • 13µA supply current in sleep mode
  • 0.1µA supply current in shutdown mode
  • 16-pin QSOP package (4.9mm x 6.0mm)
  • -40°C to +105°C temperature range
  • 3kV HBM ESD Rating
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MICRF219A is a 300MHz to 450MHz super-heterodyne, image-reject, RF receiver with automatic gain control, ASK/OOK demodulator, analog RSSI output, and integrated squelch features.  It only requires a crystal and a minimum number of external components to implement.  The MICRF219A is ideal for low-cost, low-power, RKE, TPMS, and remote actuation applications.

The MICRF219A achieves -110dBm sensitivity at a bit rate of 1kbps with 0.1% BER.  Four demodulator filter bandwidths are selectable in binary steps from 1625Hz to 13kHz at 433.92MHz, allowing the device to support bit rates up to 20kbps.

The device operates from a supply voltage of 3.0V to 3.6V, and typically consumes 4.3mA of supply current at 315MHz and 6.0mA at 433.92MHz.  A shutdown mode reduces supply current to 0.1µA typical.  The squelch feature decreases the activity on the data output pin until valid bits are detected while maintaining overall receiver sensitivity.

Additional Features
    • -110dBm sensitivity at 1kbps with 0.1% BER
    • Auto-polling mode with bit checking
    • Supports bit rates up to 20kbps at 433.92MHz
    • 25dB image-reject mixer
    • No IF filter required
    • 60dB analog RSSI output range
    • 3.0V to 3.6V supply voltage range
    • 4.3mA supply current at 315MHz
    • 6.0mA supply current at 434MHz
    • 13µA supply current in sleep mode
    • 0.1µA supply current in shutdown mode
    • 16-pin QSOP package (4.9mm x 6.0mm)
    • -40°C to +105°C temperature range
    • 3kV HBM ESD Rating
    Parametrics
    Name
    Value
    Type
    ASK/OOK Receiver
    Power Output (dBm)
    10.00
    Pin Count
    16
    Packages
    QSOP
    RF Receiver
    Yes
    Operating Temperature
    -40C to +105C
    RF Data Rate (Kbps)
    20
    Frequency Range
    300MHz-450MHz
    Input Sensitivity (dBm)
    -110.00
    Standby Current (µA)
    0.10
    Rx Power Consumption (mA)
    4.30
