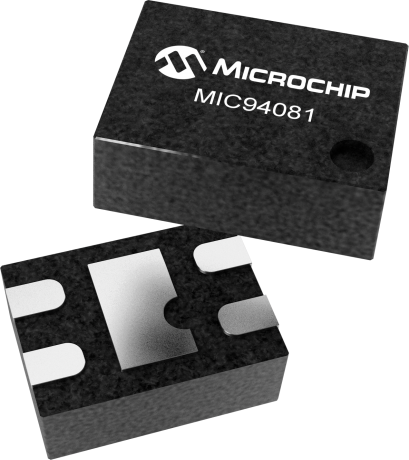

product primary image

MIC94081

High-side Load Switch, 2A, 67mΩ

Status: In Production

Features:

  • 1.7V to 5.5V input voltage range
  • 2A continuous operating current
  • 67mΩ RDSON
  • Internal level shift for CMOS/TTL control logic
  • Ultra low quiescent current
  • Micro-power shutdown current
  • Soft-Start: MIC94082/3 (800µs), MIC94084/5 (120µs)
  • Load discharge circuit: MIC94081, MIC94083, MIC94085
  • Ultra fast turn off time
  • Junction operating temperature from -40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC94080/1/2/3/4/5 is a family of high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 67mΩ RDSON P-Channel MOSFET which enables the device to support up to 2A of continuous current. Additionally

The MIC94080 and MIC94081 feature rapid turn on. The MIC94082 and MIC94083 provide a slew rate controlled soft-start turn-on of 850µs, while the MIC94084 and MIC94085 provide a slew rate controlled soft-start turn-on of 120µs. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage.

The MIC94081, MIC94083, and MIC94085 feature an active load discharge circuit which switches in a 250Ω load when the switch is disabled to automatically discharge a capacitive load.

An active pull-down on the enable input keeps the MIC94080/1/2/3/4/5 in a default OFF state until the enable pin is pulled above 1.25V. Internal level shift circuitry allows low voltage logic signals to switch higher supply voltages. The enable voltage can be as high as 5.5V and is not limited by the input voltage.

The MIC94080/1/2/3/4/5 operating voltage range makes them ideal for Lithium ion and NiMH/NiCad/Alkaline battery powered systems, as well as non-battery powered applications. The devices provide low quiescent current and low shutdown current to maximize battery life.

Additional Features
    • 1.7V to 5.5V input voltage range
    • 2A continuous operating current
    • 67mΩ RDSON
    • Internal level shift for CMOS/TTL control logic
    • Ultra low quiescent current
    • Micro-power shutdown current
    • Soft-Start: MIC94082/3 (800µs), MIC94084/5 (120µs)
    • Load discharge circuit: MIC94081, MIC94083, MIC94085
    • Ultra fast turn off time
    • Junction operating temperature from -40°C to +125°C
Parametrics
Name
Value
Product Type
Single High-Side Load Switches
Vin Min (V)
1.7
Vin Max (V)
5.5
Max SW Current (A)
2
RDS ON @5V (mΩ)
67
Load Discharge(Ω)
250
Enable Logic
High True
VEN (V)
1.25
Θja (C/W)
140

Documents

Jump to:

Data Sheet

03/13/2019
4507KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC94081YFT-TR
0.001200
0.023858
4
UDFN
0.85x0.85x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
