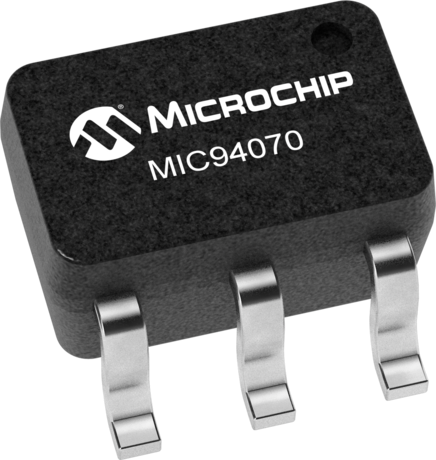

MIC94070

High-Side Load Switch 1.2A, 120mΩ

Status: In Production

Features:

  • 1.7V to 5.5V input voltage range
  • 1.2A continuous operating current
  • 3A pulse current
  • 120mΩ RDSON (typical)
  • Built-in level shift for control logic; can be operated by 1.5V logic.
  • Low 2µA quiescent current
  • Soft-Start: MIC94072/73
  • Micro-power shutdown <1µA
  • Load discharge circuit: MIC94071, MIC94073
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC94070-73 are high-side load switches designed for operation between 1.7V to 5.5V. The devices contain a low on-resistance P-channel MOSFET that supports 1.2A of continuous current. The MIC94071 and MIC94073 feature an active load discharge circuit which insures capacitive loads retain no charge when the main switch is in an OFF state.

MIC94070-71 feature rapid turn on while MIC94072-73 provide a slew rate controlled Soft-Start turn-on of 800µs (typical) to prevent in-rush current from glitching supply rails.

An active pull-down on the enable input keeps MIC94070-73 in a default OFF state until the EN pin is pulled to a high level. Built-in level shift circuitry allows low voltage logic signals to switch higher supply voltages, or vice versa; high level logic signals can control low level voltages.

MIC94070-73's operating voltage range makes them suitable for 1-cell Lithium ion and 2- to 3-cell NiMH/NiCad/Alkaline powered systems, as well as all 5V applications. Their low operating current of 2µA and low shutdown current of <1µA maximize battery life.

Additional Features
    • 1.7V to 5.5V input voltage range
    • 1.2A continuous operating current
    • 3A pulse current
    • 120mΩ RDSON (typical)
    • Built-in level shift for control logic; can be operated by 1.5V logic.
    • Low 2µA quiescent current
    • Soft-Start: MIC94072/73
    • Micro-power shutdown <1µA
    • Load discharge circuit: MIC94071, MIC94073



Parametrics
Name
Value
Product Type
Single High-Side Load Switches
Vin Min (V)
1.7
Vin Max (V)
5.5
Max SW Current (A)
1.2
RDS ON @5V (mΩ)
120
Enable Logic
High True
VEN (V)
1.2
Θja (C/W)
240, 172

Documents

Jump to:

Data Sheet

11/09/2015
806KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC94070YC6-TR
0.006500
0.036667
6
SC70
-
NiPdAu
e4
MIC94070YC6-TX
0.006500
0.036667
6
SC70
-
NiPdAu
e4
MIC94070YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
