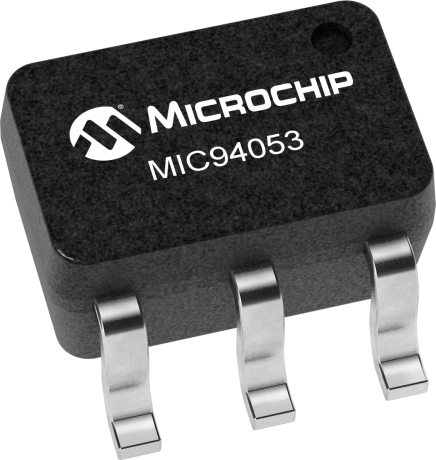

MIC94053

P-Channel MOSFET High-Side Switch

Status: In Production

Features:

  • 1.8V to 5.5V input voltage range
  • 70mΩ at VGS = 4.5V (typ)
  • 2A continuous current
  • VGS pull-up resistor (MIC94053)
  • Teeny™ SC-70-6 package
  • -40°C to +150°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC94052/94053 are low on-resistance, 84mW(max) P-channel MOSFETs. They are housed in a Teeny™ SC-70-6 package.

Designed for high-side switch applications where space is critical, the MIC94052/3 exhibit a typical on-resistance of 70mΩ at 4.5V gate-to-source voltage. The devices operate down to 1.8V gate-to-source voltage. Their operating voltage range makes the MIC94052/3 ideal for Li Ion applications as well as other sub-5V load switch applications.

The MIC94053 is an option that includes an internal gate pull-up resistor. The pull-up resistor ensures that the P-channel MOSFET is OFF until actively pulled down. Integrating the pull-up resistor saves valuable board space and reduces component placement cost.

The MIC94052/3 have a junction temperature range of -40°C to +150°C.

Additional Features
    • 1.8V to 5.5V input voltage range
    • Low on-resistance P-channel MOSFET:
      • 70mΩ at VGS = 4.5V (typ)
      • 2A continuous current
    • VGS pull-up resistor (MIC94053)
    • Teeny™ SC-70-6 package
    • -40°C to +150°C junction temperature range
Parametrics
Name
Value
Product Type
Single High-Side Load Switches
Vin Min (V)
1.8
Vin Max (V)
5.5
Max SW Current (A)
2
RDS ON @5V (mΩ)
70
Enable Logic
Low True
VEN (V)
1.2
Input Pull-Up Resistor
Yes
Θja (C/W)
240

Documents

Jump to:

Data Sheet

11/09/2015
214KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC94053YC6-TR
0.006500
0.036667
6
SC70
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
