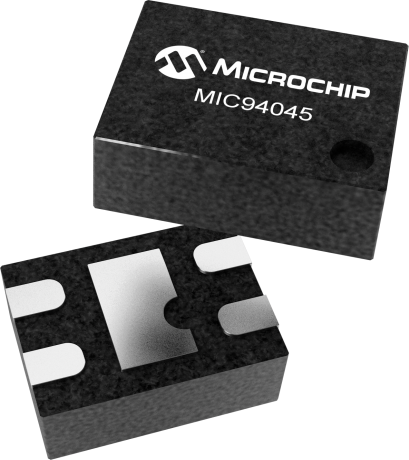

product primary image

MIC94045

High-Side Load Switch 3A, 28mΩ

Status: In Production

Features:

  • 28mΩ RDSON
  • 3A continuous operating current
  • 1.7V to 5.5V input voltage range
  • Internal level shift for CMOS/TTL control logic
  • Ultra low quiescent current
  • Micro-power shutdown current
  • Soft-Start: 1ms
  • Load discharge circuit: MIC94045
  • Ultra fast turn off time
  • Junction operating temperature from -40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC94044 and MIC94045 are high-side load switches designed to operate from 1.7V to 5.5V input voltage. The load switch pass element is an internal 28mΩ RDSON P-channel MOSFET which enables the device to support up to 3A of continuous current. The MIC94044/5 provides a slew rate controlled soft-start turn-on of 1ms (typical) to prevent an in-rush current event from pulling down the input supply voltage. The MIC94045 features an active load discharge circuit which switches in a 200Ω load when the switch is disabled to automatically discharge a capacitive load. Internal level shift circuitry allows low voltage logic signals to switch higher supply voltages. The enable voltage can be as high as 5.5V and is not limited by the input voltage. The MIC94044/5 operating voltage range makes them ideal for Lithium ion and NiMH/NiCad/Alkaline battery powered systems, as well as non-battery powered applications. The devices provide low quiescent current and low shutdown current to maximize battery life.

Additional Features
    • 28mΩ RDSON
    • 3A continuous operating current
    • 1.7V to 5.5V input voltage range
    • Internal level shift for CMOS/TTL control logic
    • Ultra low quiescent current
    • Micro-power shutdown current
    • Soft-Start: 1ms
    • Load discharge circuit: MIC94045
    • Ultra fast turn off time
    • Junction operating temperature from -40°C to +125°C
Parametrics
Name
Value
Product Type
Single High-Side Load Switches
Vin Min (V)
1.7
Vin Max (V)
5.5
Max SW Current (A)
3
RDS ON @5V (mΩ)
28
Soft Start (µS)
900
Load Discharge(Ω)
200
Enable Logic
High True
VEN (V)
1.2

Documents

Jump to:

Data Sheet

11/09/2015
426KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC94045YFL-TR
0.002400
0.709750
4
UDFN
1.2x1.2x0.6mm
NiPDAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
