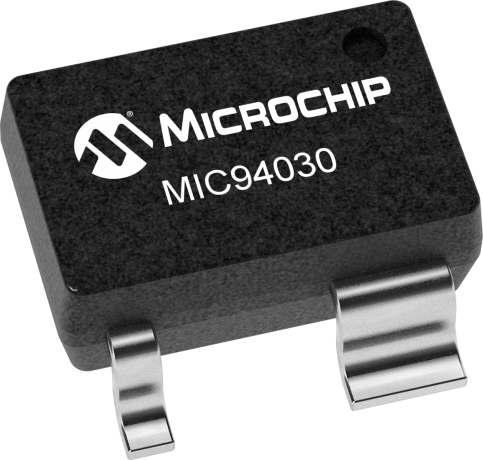

product primary image

MIC94030

4-Terminal P-Channel MOSFET High-Side Switch

Status: In Production

Features:

  • 13.5V minimum drain-to-source breakdown
  • 0.75Ω typical on-resistance at 4.5V gate-to-source voltage
  • 0.45Ω typical on-resistance
  • at 10V gate-to-source voltage
  • Operates with 2.7V gate-to-source voltage
  • Separate substrate connection for added control
  • Industry''s smallest surface mount package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC94030 and MIC94031 are 4-terminal silicon gate P-channel MOSFETs that provide low on-resistance in a very small package.

Designed for high-side switch applications where space is critical, the MIC94030/1 exhibits an on-resistance of typically 0.75Ω at 4.5V gate-to-source voltage. The MIC94030/1 also operates with only 2.7V gate-to-source voltage.

The MIC94030 is the basic 4-lead P-channel MOSFET. The MIC94031 is a variation that includes an internal gate pull-up resistor that can reduce the system parts count in many applications.

The 4-terminal SOT-143 package permits a substrate connection separate from the source connection. This 4-terminal configuration improves the θJA (improved heat dissipation) and makes analog switch applications practical.

The small size, low threshold, and low RDS(on) make the MIC94030/1 the ideal choice for PCMCIA card sleep mode or distributed power management applications.

Additional Features
    • 13.5V minimum drain-to-source breakdown
    • 0.75Ω typical on-resistance at 4.5V gate-to-source voltage
    • 0.45Ω typical on-resistance
    • at 10V gate-to-source voltage
    • Operates with 2.7V gate-to-source voltage
    • Separate substrate connection for added control
    • Industry's smallest surface mount package
Parametrics
Name
Value
Product Type
Single High-Side Load Switches
Vin Min (V)
2.7
Vin Max (V)
13.5
Max SW Current (A)
1
RDS ON @5V (mΩ)
750
Enable Logic
Low True
VEN (V)
1.4
Reverse Current Blocking
Yes
Θja (C/W)
220

Documents

Jump to:

Data Sheet

11/09/2015
144KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC94030YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
