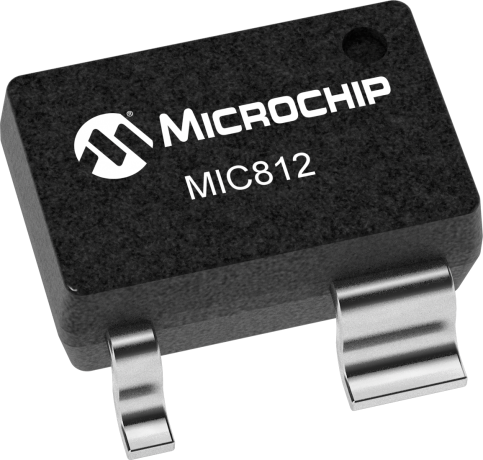

product primary image

MIC812

Microprocessor Reset Circuit with Manual Reset, Push-Pull Active-High Output, 4.0 V Thresh

Status: In Production

Features:

  • Precision voltage monitor for 3V, 3.3V or 5V power supplies
  • /RESET remains valid with VCC as low as 1V
  • 5µA typical supply current
  • 140ms minimum reset pulse width available
  • Manual reset input
  • Available in 4-pin SOT-143 package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC811 and MIC812 are inexpensive microprocessor supervisory circuits that monitor power supplies in microprocessor based systems.

The function of this device is to assert a reset if either the power supply drops below a designated reset threshold level or /MR is forced low. Several different reset threshold levels are available to accommodate 3V, 3.3V or 5V powered systems.

The MIC811 has an active low /RESET output, while the MIC812 offers an active high RESET output. The reset output is guaranteed to remain asserted for a minimum of 140ms after VCC has risen above the designed reset threshold level. Having a push-pull output stage, the MIC811/812 does not require a pull-up resistor at the output. The MIC811/812 comes in a 4-pin SOT-143 package.

If a microprocessor voltage supervisor with an open-drain output stage is needed, see MIC6315.

Additional Features
    • Precision voltage monitor for 3V, 3.3V or 5V power supplies
    • /RESET remains valid with VCC as low as 1V
    • 5µA typical supply current
    • 140ms minimum reset pulse width available
    • Manual reset input
    • Available in 4-pin SOT-143 package
Parametrics
Name
Value
Product Type
Supervisor
Manual Reset
Yes
Operating Temp. Range (°C)
-40 to 85
Vcc Range (V)
1.4 - 5.5
Nominal Reset Voltage (V)
2.63, 2.93, 3.08, 4.00, 4.38, 4.63
Reset Type
Active Low/High or High/Low
Output
Push-Pull
Typical Reset Pulse Width (ms)
140
Typical Supply Current (µA)
5

Documents

Jump to:

Data Sheets

11/09/2015
207KB
