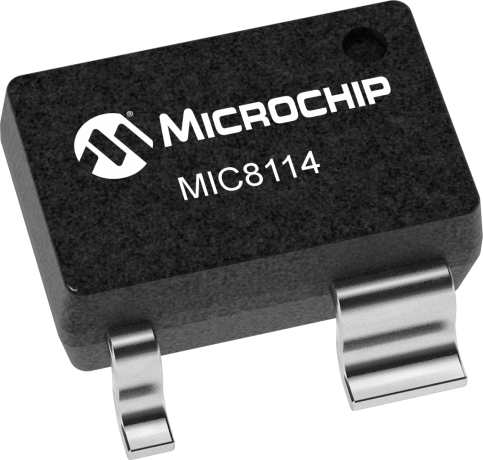

product primary image

MIC8114

Microprocessor Reset Circuit with Manual Reset, Push-Pull Active-Low Output, 3.0 Vthresh

Status: In Production

Features:

  • Precision voltage monitor for 3.3V power supplies
  • Specifically tailored to the AMD Elan SC400/410
  • /RESET remains valid with VCC as low as 1V
  • 5µA typical supply current
  • 790ms minimum reset pulse width
  • Manual reset input
  • Available in 4-Pin SOT-143 Package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC8114 is an inexpensive microprocessor supervisory circuit that monitors the power supply in microprocessor based systems.

The function of this device is to assert a reset if the power supply drops below a designated reset threshold level or /MR is forced low.

The MIC8114 has an active low /RESET output. The reset output is guaranteed to remain asserted for a minimum of 790ms after VCC has risen above the designated reset threshold level. The MIC1814 comes in a 4-pin SOT-143 package.

Additional Features
    • Precision voltage monitor for 3.3V power supplies
    • Specifically tailored to the AMD Elan SC400/410
    • /RESET remains valid with VCC as low as 1V
    • 5µA typical supply current
    • 790ms minimum reset pulse width
    • Manual reset input
    • Available in 4-Pin SOT-143 Package
Parametrics
Name
Value
Product Type
Supervisor
Manual Reset
Yes
Operating Temp. Range (°C)
-40 to 85
Vcc Range (V)
1.0 - 5.5
Nominal Reset Voltage (V)
3.08
Reset Type
Active Low
Output
Push-Pull
Typical Reset Pulse Width (ms)
790
Typical Supply Current (µA)
5

Documents

Jump to:

Data Sheets

11/09/2015
262KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC8114TUY-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
