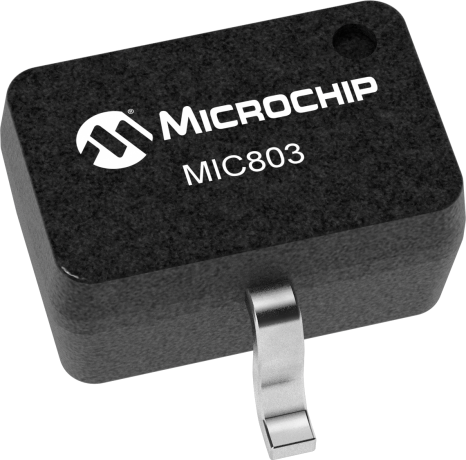

product primary image

MIC803

3-Pin Microprocessor Supervisor Circuit with Open-Drain Reset Output

Status: In Production

Features:

  • 4.5µA supply current (typical) at 3.6V
  • Open-Drain /RESET output
  • /RESET remains valid with VCC as low as 1V
  • 20ms, 140ms, or 1120ms (min) reset timeout Options
  • 2.63V to 4.63V Preset Voltage Threshold Options
  • 2.5% Voltage Threshold Accuracy over temperature
  • 3-pin SC70-3 package (2.0mm x 2.1mm)
  • 3-pin SOT-23 package (2.3mm x 2.9mm)
  • -40°C to +125°C Junction Temperature Range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC803 is a single-voltage supervisor with open-drain reset output that provides accurate power supply monitoring and reset generation in microprocessor based systems. The function of the device is to assert a reset signal if the power supply voltage drops below the Reset Threshold voltage, and retain this reset for the Reset Timeout Period once the power supply increases above the Reset Threshold voltage.

The MIC803 consumes only 4.5µA of supply current and offers three reset delay periods of 20ms, 140ms and 1120ms (min). It features factory programmed reset threshold levels from 2.63V to 4.63V to accommodate 3.0V, 3.3V, and 5.0V power supplies. It is available in the compact 3-pin SC-70 and SOT-23 packages.

Additional Features
    • 4.5µA supply current (typical) at 3.6V
    • Open-Drain /RESET output
    • /RESET remains valid with VCC as low as 1V
    • 20ms, 140ms, or 1120ms (min) reset timeout Options
    • 2.63V to 4.63V Preset Voltage Threshold Options
    • 2.5% Voltage Threshold Accuracy over temperature
    • 3-pin SC70-3 package (2.0mm x 2.1mm)
    • 3-pin SOT-23 package (2.3mm x 2.9mm)
    • -40°C to +125°C Junction Temperature Range
Parametrics
Name
Value
Product Type
Supervisor
Operating Temp. Range (°C)
-40 to 125
Vcc Range (V)
1.0 - 5.5
Nominal Reset Voltage (V)
2.63, 2.93, 3.00, 3.08, 4.00, 4.10, 4.38, 4.63
Reset Type
Active Low
Output
Open-Drain
Typical Supply Current (µA)
5

Documents

Jump to:

Data Sheets

11/09/2015
578KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC803-44D4VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-46D3VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-44D2VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-30D3VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-31D4VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-40D4VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-46D2VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-26D2VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-26D3VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-26D4VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-29D2VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-29D3VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-29D4VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-30D2VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-30D4VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-31D2VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-40D3VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-31D3VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-40D2VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-41D4VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-41D2VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-41D3VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-44D3VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-46D4VC3-TR
0.005900
0.034333
3
SC70
-
NiPdAu
e4
MIC803-29D4VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-41D2VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-46D4VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-26D4VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-44D2VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-44D3VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-31D4VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-46D2VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-40D2VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-46D3VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-26D2VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-30D3VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-30D4VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-40D4VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-40D3VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-26D3VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-29D2VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-29D3VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-30D2VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-31D2VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-31D3VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-41D4VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-41D3VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
MIC803-44D4VM3-TR
0.009500
0.035667
3
SOT-23
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
