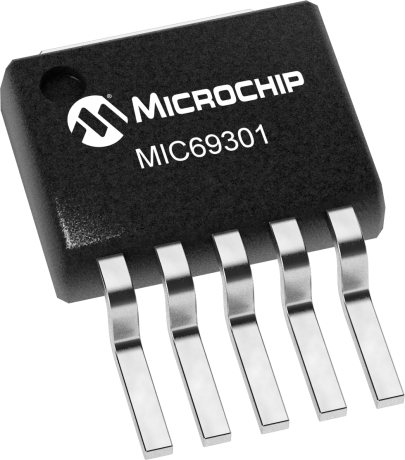

product primary image

MIC69301

Single Supply Low Vin, 3A LDO

Status: In Production

Features:

  • Input voltage range: VIN: 1.65V to 5.5V
  • Maximum dropout (VIN - VOUT) of 500mV over temperature
  • Adjustable output voltage down to 0.5V
  • Stable with 10µF ceramic output capacitor
  • Excellent line and load regulation
  • Logic controlled shutdown
  • Thermal shutdown and current limit protection
  • Error flag output
  • 5-Pin TO-263
  • 5-Pin S-Pak package
  • ePad SOIC-8 package
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC69301/2/3 is the 3A output current member of the MIC69xxx family of high-current, low-voltage regulators, which support currents of 1A, 1.5A, 3A, and 5A. This family operates from a single low voltage supply, yet offers high precision and ultra-low dropout of 500mV under worst case conditions.

The MIC69301/2/3 operates from an input voltage of 1.65V to 5.5V. It is designed to drive digital circuits requiring low voltage at high currents (i.e., PLDs, DSP, microcontroller, etc.). These regulators are available in adjustable and fixed output voltages. The adjustable version can support output voltages down to 0.5V.

The µCap design of the MIC69301/2/3 is optimized for stability with low value, low-ESR ceramic output capacitors.

Features of the MIC69301/2/3 include thermal shutdown and current limit protection. Logic-enable and error flag pins are also available.

The MIC69301/2/3 is offered in TO-263, S-PAK and the ePad SOIC-8 packages. All packages have an operating temperature range of -40°C to +125°C.

Additional Features
    • Input voltage range: VIN: 1.65V to 5.5V
    • Maximum dropout (VIN - VOUT) of 500mV over temperature
    • Adjustable output voltage down to 0.5V
    • Stable with 10µF ceramic output capacitor
    • Excellent line and load regulation
    • Logic controlled shutdown
    • Thermal shutdown and current limit protection
    • Error flag output
    • 5-Pin TO-263
    • 5-Pin S-Pak package
    • ePad SOIC-8 package
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
3000
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
3000
VIN Min (V)
1.65
VIN Max (V)
5.5
VOUT (V)
1.2
Voltage Drop Typ (mV)
275
IGND Typ (µA)
1200
Tol Typ %
±2
PSRR 1 kHz (dB)
55
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC69301-1.2WR
0.529700
0.666667
5
SPAK
-
Matte Tin
e3
MIC69301-1.2WR-TR
0.529700
1.440000
5
SPAK
-
Matte Tin
e3
MIC69301-1.2YME-TR
0.078000
0.700602
8
SOIC
3.9mm
Matte Tin
e3
MIC69301-1.2WU
1.462500
2.520000
5
DDPAK
-
Matte Tin
e3
MIC69301-1.2WU-TR
1.462500
2.053333
5
DDPAK
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
