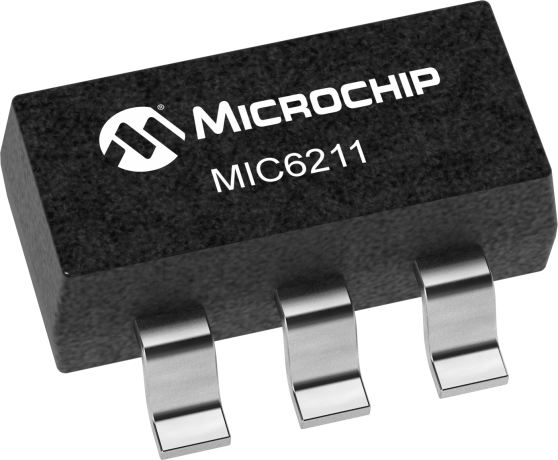

product primary image

MIC6211

Status: In Production

Features:

  • 4V to 32V operation
  • Small footprint package
  • Unity gain stable
  • 2.5 MHz unity gain bandwidth
  • 6V/µs typical slew rate
  • Short circuit protected
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC6211 op amp is a general-purpose operational amplifier, that operates from 4V to 32V, single or differential (split) supply. The device features a 2.5MHz unity gain bandwidth, 6V/µs slew rate, and is internally unity-gain compensated. The MIC6211 is available in the tiny, 5-lead SOT-23-5 surface-mount package

Additional Features
    • 4V to 32V operation
    • Small footprint package
    • Unity gain stable
    • 2.5 MHz unity gain bandwidth
    • 6V/µs typical slew rate
    • Short circuit protected
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +85°C
Vos Max (µV)
7000
# per Package
1
Iq Typical (µA)
1200
Iq Max (µA)
1800
GBWP (kHz)
2500
Operating Voltage Range (V)
4.0 to 32
Device Description
Linear Op Amps
PSRR Min (dB)
65
CMRR Min (dB)
45
Aol (dB)
105
Isc (mA)
40

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC6211YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
