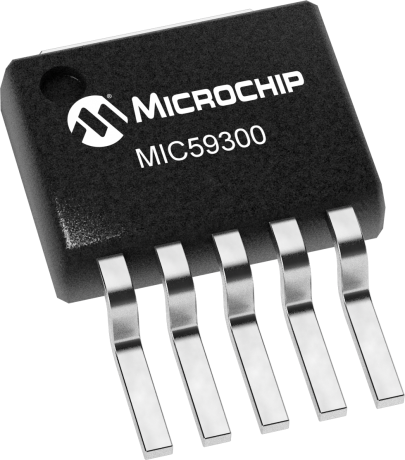

product primary image

MIC59300

Ultra Fast 3A LDO

Status: In Production

Features:

  • VIN = 1.0V to 3.8V
  • VBIAS = 3.0V to 5.5V
  • Stable with 1µF ceramic capacitor
  • ±1% initial tolerance
  • Maximum dropout voltage of 500mV over temperature
  • Adjustable output voltage down to 0.5V
  • Ultra-fast transient response
  • Excellent line and load regulation specifications
  • Logic controlled shutdown option
  • Thermal shutdown and current limit protection
  • Junction temperature range: -40°C to +125°C
  • TO-263 and 8-pin ePad SOIC
  • Pin compatible upgrade to MIC49300
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC59300 is a high-bandwidth, low-dropout, 3A linear voltage regulator ideal for powering core voltages of low-power microprocessors. The MIC59300 implements a dual supply configuration allowing for a very low output impedance and a very fast transient response.

The MIC59300 requires a bias input supply and a main input supply, allowing for ultra-low input voltages on the main supply rail. The device operates from an input supply of 1.0V to 3.8V and bias supply between 3V and 5.5V. The MIC59300 offers fixed output voltages and adjustable output voltages down to 0.5V.

The MIC59300 requires a minimum output capacitance for stability, working optimally with small ceramic capacitors.

The MIC59300 is available in a 5-pin TO-263 and an 8-pin ePad SOIC package and its junction temperature range is -40°C to +125°C.

Additional Features
    • Input voltage range:
      • VIN = 1.0V to 3.8V
      • VBIAS = 3.0V to 5.5V
    • Stable with 1µF ceramic capacitor
    • ±1% initial tolerance
    • Maximum dropout voltage of 500mV over temperature
    • Adjustable output voltage down to 0.5V
    • Ultra-fast transient response
    • Excellent line and load regulation specifications
    • Logic controlled shutdown option
    • Thermal shutdown and current limit protection
    • Junction temperature range: -40°C to +125°C
    • TO-263 and 8-pin ePad SOIC
    • Pin compatible upgrade to MIC49300
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
3000
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
3000
VIN Min (V)
1
VIN Max (V)
3.8
VOUT (V)
1.2, Adj
Voltage Drop Typ (mV)
205
IGND Typ (µA)
2000
Tol Typ %
±1
PSRR 1 kHz (dB)
65
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheets


439KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
MIC59300YME Evaluation Board
MIC59300YME Evaluation Board ( MIC59300YME-EV )

The demonstration board can be used to evaluate the MIC59300. The MIC59300, a 3.0A, ultra-high speed, low dropout linear regulator, utilizes a split supply input to regulate low output voltages. It is offered in fixed and adjustable outputs. The adjustable version allows the use of a resistor divider network to adjust the output voltage. An enable pin allows it to be placed in a zero-current off...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC59300-1.2YME
0.078000
0.185790
8
SOIC
3.9mm
Matte Tin
e3
MIC59300-1.2YME-TR
0.078000
0.700602
8
SOIC
3.9mm
Matte Tin
e3
MIC59300YME
0.078000
0.185790
8
SOIC
3.9mm
Matte Tin
e3
MIC59300YME-TR
0.078000
0.700602
8
SOIC
3.9mm
Matte Tin
e3
MIC59300-1.2WU
1.462500
2.520000
5
DDPAK
-
Matte Tin
e3
MIC59300-1.2WU-TR
1.462500
2.053333
5
DDPAK
-
Matte Tin
e3
MIC59300WU
1.462500
2.520000
5
DDPAK
-
Matte Tin
e3
MIC59300WU-TR
1.462500
2.053333
5
DDPAK
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
