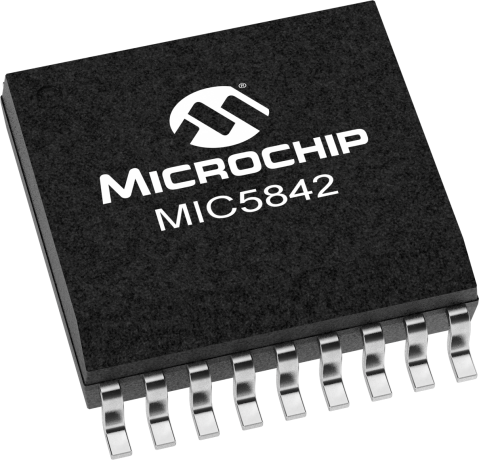

MIC5842

8-Bit Serial-in Latched Driver, Diodes

Status: In Production

Features:

  • 3.3 MHz Minimum Data-Input Rate
  • CMOS, PMOS, NMOS, TTL Compatible
  • Internal Pull-Up/Pull-Down Resistors
  • Low-Power CMOS Logic and Latches
  • High-Voltage Current-Sink Outputs
  • Output Transient-Protection Diodes
  • Single or Split Supply Operation
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

Using BiCMOS technology, the MIC5841/5842 integrated circuits were fabricated to be used in a wide variety of peripheral power driver applications. The devices each have an eight-bit CMOS shift register, CMOS control circuitry, eight CMOS data latches, and eight bipolar current-sink Darlington output drivers. These two devices differ only in maximum voltage ratings. The MIC5842 offers premium performance with a minimum output breakdown voltage rating of 80V (50V sustaining). The drivers can be operated with a split supply where the negative supply is down to -20V. The 500 mA outputs, with integral transient-suppression diodes, are suitable for use with lamps, relays, solenoids and other inductive loads. These devices have improved speed characteristics. With a 5V logic supply, they will typically operate faster than 5 MHz. With a 12V supply, significantly higher speeds are obtained. The CMOS inputs are compatible with standard CMOS, PMOS, and NMOS logic levels. TTL or DTL circuits may require the use of appropriate pull-up resistors. By using the serial data output, the drivers can be cascaded for interface applications requiring additional drive lines. The MIC5840 family is available in DIP, PLCC, and SOIC packages. Because of limitations on package power dissipation, the simultaneous operation of all drivers at maximum rated current might require a reduction in duty cycle. A copper-alloy lead frame provides for maximum package power dissipation.

Additional Features
    • 3.3 MHz Minimum Data-Input Rate
    • CMOS, PMOS, NMOS, TTL Compatible
    • Internal Pull-Up/Pull-Down Resistors
    • Low-Power CMOS Logic and Latches
    • High-Voltage Current-Sink Outputs
    • Output Transient-Protection Diodes
    • Single or Split Supply Operation
Parametrics
Name
Value
Type
Sink
Output Channels
8
Vout (V) operating – Transient
80
Vout (V) Operating - Sustained
50
Iout (mA) per Channel
500
Output Structure
Darlington Open Collector
Input Structure
Serial
Minimum Data Clock (MHz)
3.3
General Description
8-Bit Serial-in Latched Driver, Diodes
Package
20/PLCC 18/SOIC 300mil 18/PDIP

Documents

Jump to:

Data Sheets

11/09/2015
163KB

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$14.46
$10.08
$2.51
$3.51
$2.25
$3.81
$3.51
$3.33
$3.33
$4.00
$5.51
$4.45
$4.00
$5.51
$4.45
$6.71
$8.76
$6.07
$6.67
$1.60
$11.95
$8.45
$2.06
$1.49
$7.11
$8.52
$13.48
$3.00
$3.00
$3.00
$1.09
$0.84
$1.67
$1.39
$1.17
$1.49
$1.50
$1.07
$3.39
$3.11
$3.24
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5842YV
0.751700
1.428571
20
PLCC
8.9x8.9x4.4mm
Matte Tin
e3
MIC5842YV-TR
0.751700
1.360000
20
PLCC
8.9x8.9x4.4mm
Matte Tin
e3
MIC5842YWM
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
MIC5842YWM-TR
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
MIC5842YN
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
