MIC5528

Single High Performance 500mA LDO w/ Auto Discharge & Internal Enable Pulldown

Status: In Production

Features:

  • Input voltage range: 2.5V to 5.5V
  • Fixed output voltages down to 1.0V
  • ±2% Room temperature accuracy
  • Low quiescent current: 38µA
  • Stable with 2.2µF ceramic output capacitors
  • Low dropout voltage: 260mV @ 500mA
  • Auto discharge and internal enable pulldown
  • Thermal-shutdown and current-limit protection
  • 6-pin 1.2mm x 1.2mm extra thin DFN package
  • 6-pin 1.2mm x 1.2mm thin DFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5528 is a low-power, μCap, low dropout regulator designed for optimal performance in a very-small footprint. It is capable of sourcing up to 500mA of output current while only drawing 38μA of operating current. This high-performance LDO is a μCap design in a thermally enhanced 1.2mm x 1.2mm extra thin (0.4mm ht.) DFN package. It operates with small ceramic output capacitor for stability, thereby reducing required board space.

Ideal for battery-operated applications, the MIC5528 offers ±2% accuracy, extremely low dropout voltage (260mV @ 500mA), and can regulate output voltages down to 1.0V. Equipped with a TTL logic-compatible enable pin, the MIC5528 can be put into a zero-off-mode current state, drawing no current when disabled.

The MIC5528 is a μCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost for space-critical applications. The MIC5528 has an operating junction temperature range of -40°C to 125°C.

Additional Features
    • Input voltage range: 2.5V to 5.5V
    • Fixed output voltages down to 1.0V
    • ±2% Room temperature accuracy
    • Low quiescent current: 38µA
    • Stable with 2.2µF ceramic output capacitors
    • Low dropout voltage: 260mV @ 500mA
    • Auto discharge and internal enable pulldown
    • Thermal-shutdown and current-limit protection
    • 6-pin 1.2mm x 1.2mm extra thin DFN package
    • 6-pin 1.2mm x 1.2mm thin DFN package
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
500
VIN Min (V)
2.5
VIN Max (V)
5.5
VOUT (V)
3.3
Voltage Drop Typ (mV)
260
IGND Typ (µA)
38
Tol Typ %
±2
Noise (µV) rms
175
PSRR 1 kHz (dB)
70
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5528-3.0YMX-TR
0.709150
6

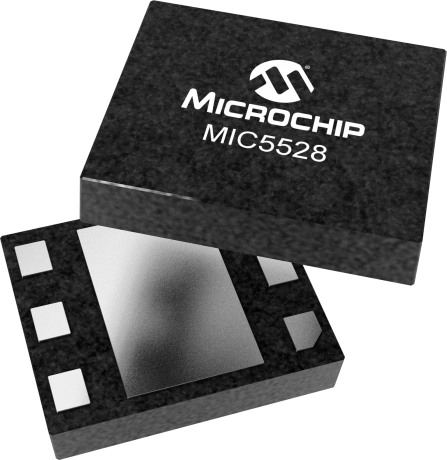

X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
MIC5528-1.2YMX-TR
0.709150
6
X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
MIC5528-1.8YMX-TR
0.709150
6
X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
MIC5528-3.3YMT-T5
0.005400
0.547090
6

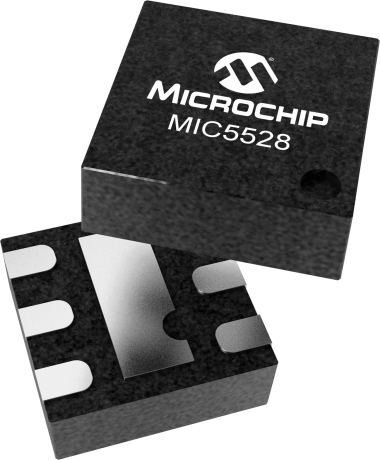

UDFN
1.2x1.2x0.6mm
NiPdAu
e4
MIC5528-3.3YMT-TR
0.005400
0.547090
6
UDFN
1.2x1.2x0.6mm
NiPdAu
e4
MIC5528-1.1YMX-T5
0.709150
6
X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
MIC5528-1.1YMX-TR
0.709150
6
X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
MIC5528-2.8YMX-T5
0.709150
6
X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
MIC5528-2.8YMX-TR
0.709150
6
X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
MIC5528-3.3YMX-T5
0.709150
6
X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
MIC5528-3.3YMX-TR
0.709150
6
X2DFN
1.2x1.2x0.4mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
