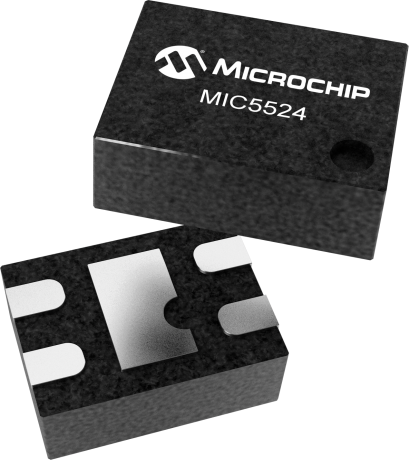

product primary image

MIC5524

Single High-Performance 500mA LDO

Status: In Production

Features:

  • Input voltage range: 2.5V to 5.5V
  • Fixed output voltages down to 1.0V
  • 500mA guaranteed output current
  • High output initial accuracy (±1%)
  • High PSRR: 80dB
  • Low quiescent current: 38µA
  • Stable with 2.2µF ceramic output capacitors
  • Low dropout voltage: 260mV @ 500mA
  • Autodischarge and internal enable pulldown
  • Thermal-shutdown and current-limit protection
  • 4-pin 1mm x 1mm Thin DFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5524 is a low-power, μCap, low dropout regulator designed for optimal performance in a very-small footprint. It is capable of sourcing 500mA of output current and only draws 38μA of operating current to do so. The MIC5524 includes an auto-discharge feature on the output that is activated when the enable pin is low and it has an internal pull down resistor on the enable pin that will disable the output when the enable pin is left floating, this is ideal for applications where the control signal is floating during processor boot up.

This high-performance LDO offers fast transient response and good PSRR in a 1mm x 1mm Thin (0.4mm high) DFN package.

Ideal for battery-operated applications, the MIC5524 offers 2% accuracy, extremely low dropout voltage (260mV @ 500mA), and can regulate output voltages down to 1.0V. Equipped with a TTL logic-compatible enable pin, the MIC5524 can be put into a zero-off-mode current state, drawing no current when disabled.

The MIC5524 is a μCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost for space-critical applications. The MIC5524 has an operating junction temperature range of -40°C to 125°C.

Additional Features
    • Input voltage range: 2.5V to 5.5V
    • Fixed output voltages down to 1.0V
    • 500mA guaranteed output current
    • High output initial accuracy (±1%)
    • High PSRR: 80dB
    • Low quiescent current: 38µA
    • Stable with 2.2µF ceramic output capacitors
    • Low dropout voltage: 260mV @ 500mA
    • Autodischarge and internal enable pulldown
    • Thermal-shutdown and current-limit protection
    • 4-pin 1mm x 1mm Thin DFN package
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
500
VIN Min (V)
2.5
VIN Max (V)
5.5
VOUT (V)
1.2, 1.8, 2.8,??3.0, 3.3
Voltage Drop Typ (mV)
260
IGND Typ (µA)
38
Tol Typ %
±2
Noise (µV) rms
80
PSRR 1 kHz (dB)
65
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5524-1.2YMT-TZ
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-2.8YMT-TZ
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-3.0YMT-TZ
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-1.8YMT-TZ
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-2.5YMT-T5
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-2.5YMT-TZ
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-2.8YMT-T5
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-3.3YMT-TZ
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-3.3YMT-T5
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-1.8YMT-T5
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-3.0YMT-T5
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
MIC5524-1.2YMT-T5
0.008600
0.108000
4
UDFN
1.01.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
