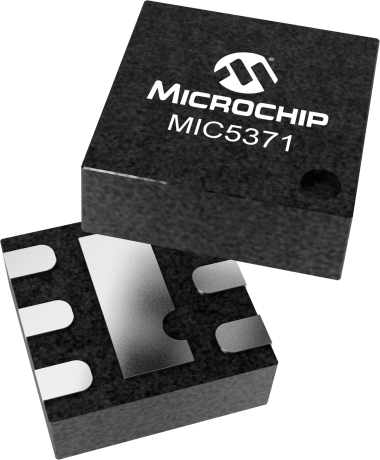

MIC5371

High Performance Dual 150mA LDO w/ Auto Discharge

Status: In Production

Features:

  • 2.5V to 5.5V input voltage range
  • Two 150mA output current LDOs
  • High output accuracy: ±2% initial accuracy
  • Low quiescent current 32µA per LDO
  • Stable with 1µF ceramic output capacitors
  • Independent enable pins
  • Low dropout voltage: 155mV at 150mA
  • Thermal shutdown protection
  • Current limit protection
  • Output discharge circuit (MIC5371)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5370/1 is an advanced dual LDO ideal for powering general purpose portable devices. Ideal for battery-powered applications, the MIC5370/1 offers 2% initial accuracy, low dropout voltage (155mV @ 150mA) and low ground current (typically 32µA per LDO). The MIC5370/1 can also be put into a zero off-mode current state, drawing virtually no current when disabled. When the MIC5371 is disabled, an internal resistive load is automatically applied to the output to discharge the output capacitor. This LDO offers fast transient response and high PSRR while consuming a minimum operating current.

Additional Features
    • 2.5V to 5.5V input voltage range
    • Two 150mA output current LDOs
    • High output accuracy: ±2% initial accuracy
    • Low quiescent current 32µA per LDO
    • Stable with 1µF ceramic output capacitors
    • Independent enable pins
    • Low dropout voltage: 155mV at 150mA
    • Thermal shutdown protection
    • Current limit protection
    • Output discharge circuit (MIC5371)



Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
150
IOUT #2
150
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
150
VIN Min (V)
2.5
VIN Max (V)
5.5
VOUT (V)
Please Contact Sales Office
Voltage Drop Typ (mV)
155
IGND Typ (µA)
32
Tol Typ %
±2
Noise (µV) rms
200
PSRR 1 kHz (dB)
60
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect
