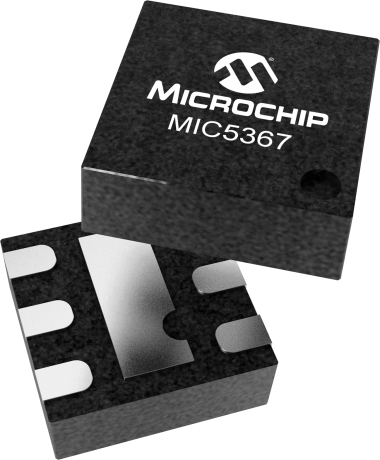

product primary image

MIC5367

High Performance 200mA Peak LDO

Status: In Production

Features:

  • Input voltage range: 2.5V to 5.5V
  • 200mA peak (150mA continuous) output current
  • Stable with 1µF ceramic output capacitors
  • Low dropout voltage: 180mV at 150mA
  • Excellent load/line transient response
  • Low quiescent current: 29µA
  • High PSRR: 65dB
  • Output discharge circuit: MIC5368
  • ±2% initial accuracy
  • Tiny 1.6mm x 1.6mm Thin package
  • Thermal shutdown and current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC5367/8 is an advanced, general purpose linear regulator offering high power supply rejection (PSRR) in an ultra-small 1.6mm x 1.6mm package. The MIC5368 includes an auto-discharge feature that is activated when the enable pin is low. The MIC5367/8 is capable of sourcing 200mA peak (150mA continous) output current and offers high PSRR, making it an ideal solution for any portable electronic application.

Great for battery-powered applications, the MIC5367/8 offers 2% initial accuracy, low dropout voltage (180mV at 150mA), and low ground current (typically 29µA). The MIC5367/8 can also be put into a zero off-mode current state, drawing virtually no current when disabled.

The MIC5367/8 has an operating junction temperature range of - 40°C to 125°C.

Additional Features
    • Input voltage range: 2.5V to 5.5V
    • 200mA peak (150mA continuous) output current
    • Stable with 1µF ceramic output capacitors
    • Low dropout voltage: 180mV at 150mA
    • Excellent load/line transient response
    • Low quiescent current: 29µA
    • High PSRR: 65dB
    • Output discharge circuit: MIC5368
    • High output accuracy:
      • ±2% initial accuracy
    • Tiny 1.6mm x 1.6mm Thin package
    • Thermal shutdown and current limit protection
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
200
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
200
VIN Min (V)
2.5
VIN Max (V)
5.5
VOUT (V)
1.2, 1.5, 3.3
Voltage Drop Typ (mV)
180
IGND Typ (µA)
29
Tol Typ %
±2
Noise (µV) rms
200
PSRR 1 kHz (dB)
65
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5367-1.5YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5367-3.3YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5367-1.2YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
