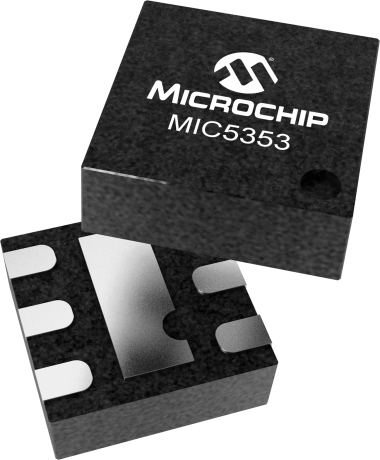

product primary image

MIC5353

6Vin, Single 500mA ULDO

Status: In Production

Features:

  • 500mA guaranteed output current
  • Input voltage range: 2.6V to 6V
  • Ultra-low dropout voltage: 160mV at 500mA
  • ±2% initial accuracy
  • Ultra-low output noise: 30µVrms
  • Low quiescent current: 90µA
  • Stable with ceramic output capacitors
  • 35µs turn-on time
  • Thermal shutdown and current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5353 is a high performance, single-output, ultra-low LDO (ULDO™) regulator, offering a low total output noise of 30µVrms. The MIC5353 is capable of sourcing 500mA output current and offers high PSRR and low output noise, making it an ideal solution for RF applications.

The MIC5353 provides 2% accuracy, extremely low dropout voltage (160mV at 500mA), and low ground current (typically 90µA) making it ideal for battery-operated applications. When disabled, the MIC5353 enters a zero off-mode current state, thereby drawing almost no current.

Additional Features
    • 500mA guaranteed output current
    • Input voltage range: 2.6V to 6V
    • Ultra-low dropout voltage: 160mV at 500mA
    • ±2% initial accuracy
    • Ultra-low output noise: 30µVrms
    • Low quiescent current: 90µA
    • Stable with ceramic output capacitors
    • 35µs turn-on time
    • Thermal shutdown and current limit protection



Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
500
VIN Min (V)
2.6
VIN Max (V)
6
VOUT (V)
1.8, 2.5, 2.6, 2.8, 3.0, 3.3, Adj
Voltage Drop Typ (mV)
160
IGND Typ (µA)
90
Tol Typ %
±2
Noise (µV) rms
30
PSRR 1 kHz (dB)
60
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5353YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5353-3.3YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5353-2.6YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5353-1.8YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5353-2.5YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5353-2.8YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5353-3.0YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
