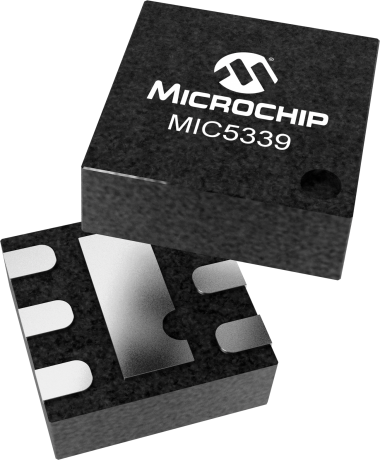

product primary image

MIC5339

Dual 300mA LDO w/ Active Discharge

Status: In Production

Features:

  • 2.5V to 5.5V input voltage range
  • Two 300mA outputs
  • High output accuracy: 2%
  • Low quiescent current: 70 µA total
  • Stable with ceramic output capacitors
  • Independent enable pins
  • Low dropout voltage: 220mV at 300mA
  • Low output noise
  • Thermal shutdown protection
  • Current limit protection
  • Output discharge circuit
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC5338/9 is an advanced dual 300mA LDO ideal for powering general purpose portable devices requiring low output noise and excellent power supply rejection ratio (PSRR). The MIC5338/9 provides two independently controlled, high performance 300mA LDOs in a tiny 1.6mm x 1.6mm Thin package.

The MIC5338/9 provides two low noise outputs with fast transient response. Additionally the MIC5338/9 provides low quiescent current operation, using only 70µA with both outputs enabled. The MIC5339 also incorporates an active discharge feature that pulls down the output of the regulator when the part is disabled.

The MIC5338/9 is available in fixed output voltages in a lead-free (RoHS-compliant) 6-pin 1.6mm x 1.6mm Thin leadless package.

Additional Features
    • 2.5V to 5.5V input voltage range
    • Two 300mA outputs
    • High output accuracy: 2%
    • Low quiescent current: 70 µA total
    • Stable with ceramic output capacitors
    • Independent enable pins
    • Low dropout voltage: 220mV at 300mA
    • Low output noise
    • Thermal shutdown protection
    • Current limit protection
    • Output discharge circuit
Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
300
IOUT #2
300
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
300
VIN Min (V)
2.5
VIN Max (V)
5.5
VOUT (V)
1.2/1.0, 1.8/1.2, 2.8/1.2, 2.8/1.8, 3.3/2.8
Voltage Drop Typ (mV)
220
IGND Typ (µA)
38
Tol Typ %
±2
Noise (µV) rms
200
PSRR 1 kHz (dB)
55
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5339-MGYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5339-SMYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5339-4CYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5339-G4YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5339-M4YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
