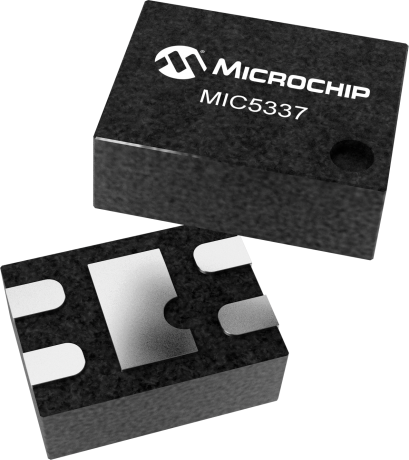

product primary image

MIC5337

Single 300mA Low Iq ULDO with Auto Discharge

Status: In Production

Features:

  • 300mA output current
  • Low IQ: only 24µA operating current
  • Low dropout voltage: 180mV at 300mA
  • Active discharge when enable pin is low
  • Input voltage range: 2.3V to 5.5V
  • Fixed output voltages
  • Stable with 1µF ceramic capacitors
  • Thermal shutdown and current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC5337 is a low quiescent current, low dropout regulator with an internal auto-discharge feature designed for optimal performance in a small space. The MIC5337 is capable of sourcing 300mA of output current while only consuming 24µA of operating current. When the MIC5337 is disabled, an internal resistive load is automatically applied to the output capacitor to discharge it. This high performance LDO offers fast transient response as well as maintaining a high PSRR.

The MIC5337 is an ideal solution for battery-operated applications due to ultra-low operating current and extremely low dropout voltage of 180mV at 300mA. Equipped with a TTL logic-compatible enable pin, the MIC5337 can be put into a zero off-mode current state, drawing virtually no current when disabled.

Board space and component cost is minimized because the MIC5337 operates with very small 1µF ceramic capacitors, provides fixed output voltages,

Additional Features
    • 300mA output current
    • Low IQ: only 24µA operating current
    • Low dropout voltage: 180mV at 300mA
    • Active discharge when enable pin is low
    • Input voltage range: 2.3V to 5.5V
    • Fixed output voltages
    • Stable with 1µF ceramic capacitors
    • Thermal shutdown and current limit protection



    Parametrics
    Name
    Value
    Product Type
    Single LDOs
    # of Out
    1
    IOUT #1
    300
    IOUT #2
    n/a
    IOUT #3
    n/a
    IOUT #4
    n/a
    IOUT (mA)
    300
    VIN Min (V)
    2.3
    VIN Max (V)
    5.5
    VOUT (V)
    1.8, 2.8
    Voltage Drop Typ (mV)
    180
    IGND Typ (µA)
    24
    Tol Typ %
    ±0.5
    Noise (µV) rms
    90
    PSRR 1 kHz (dB)
    65
    Soft Start Pin
    Load Dump
    Rev Bat
    Reverse Current Protect

    Documents

    Jump to:

    Development tools data is currently unavailable.

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (grams)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    MIC5337-1.8YMT-TR
    0.002400
    0.547400
    4
    UDFN
    1.2x1.6x0.6mm
    NiPdAu
    e4
    MIC5337-2.8YMT-TR
    0.002400
    0.547400
    4
    UDFN
    1.2x1.6x0.6mm
    NiPdAu
    e4
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
