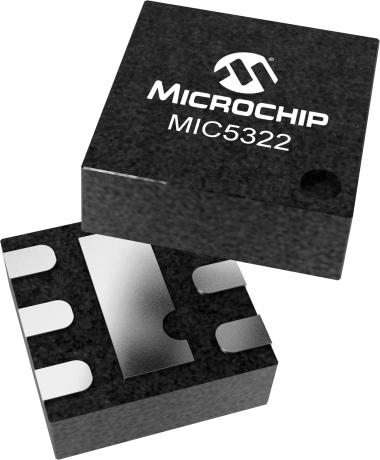

product primary image

MIC5322

Dual High Performance 150mA uCap ULDO

Status: In Production

Features:

  • 2.3V to 5.5V input voltage range
  • Ultra-low dropout voltage ULDO: 35mV @ 150mA
  • Bypass pin for improved noise performance
  • High PSRR: >75dB on each LDO
  • Ultra-low noise output: > 30µVrms
  • Dual 150mA outputs
  • µCap stable with 1µF ceramic capacitor
  • Low quiescent current: 150µA
  • Fast turn-on time: 45µs
  • Thermal shutdown protection
  • Current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5322 is a tiny Dual Ultra Low-Dropout (ULDO) linear regulator ideally suited for those applications that require high Power Supply Rejection Ratio (PSRR). It provides a bypass pin to increase PSRR for noise sensitive portable electronics.

The MIC5322 is a µCap design which enables operation with very small ceramic output capacitors for stability, thereby reducing required board space and component cost. The combination of extremely low-dropout voltage, very high power supply rejection, very low output noise and exceptional thermal package characteristics makes it ideal for powering RF applications, cellular phones, GPS, imaging sensors for digital still cameras, PDAs, MP3 players, and other portable applications.

The MIC5322 ULDO is available in fixed-output voltages in SOT-23, and TSOP.

Additional Features
    • 2.3V to 5.5V input voltage range
    • Ultra-low dropout voltage ULDO: 35mV @ 150mA
    • Bypass pin for improved noise performance
    • High PSRR: >75dB on each LDO
    • Ultra-low noise output: > 30µVrms
    • Dual 150mA outputs
    • µCap stable with 1µF ceramic capacitor
    • Low quiescent current: 150µA
    • Fast turn-on time: 45µs
    • Thermal shutdown protection
    • Current limit protection
Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
150
IOUT #2
150
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
150
VIN Min (V)
2.3
VIN Max (V)
5.5
VOUT (V)
Please Contact Sales Office
Voltage Drop Typ (mV)
35
IGND Typ (µA)
150
Tol Typ %
±2
Noise (µV) rms
30
PSRR 1 kHz (dB)
75
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

User Guides

11/11/2015
92KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5322-PMYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5322-PNYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5322-PPYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5322-MGYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5322-MFYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5322-NNYMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
