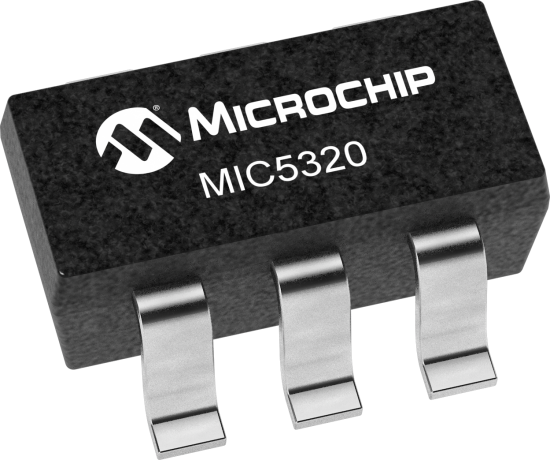

MIC5320

High Performance Dual 150mA uCap ULDO

Status: In Production

Features:

  • 2.3V to 5.5V input voltage range
  • Ultra-low dropout voltage ULDO: 35mV @ 150mA
  • Low cost TSOT-23-6 package
  • Independent enable pins
  • PSRR: >65dB on each LDO
  • 150mA output current per LDO
  • µCap stable with 1µF ceramic capacitor
  • Low quiescent current: 85µA per output
  • Fast turn-on time: 30µs
  • Thermal shutdown protection
  • Current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC5320 is a tiny Dual Ultra Low-Dropout (ULDO) linear regulator ideally suited for portable electronics. It is ideal for general purpose/ digital applications which require high power supply ripple rejection (PSRR) >65dB, eliminating the need for a bypass capacitor and providing two enable pins for maximum flexibility.

The MIC5320 is a µCap design which enables operation with very small ceramic output capacitors for stability, thereby reducing required board space and component cost. The combination of extremely low-dropout voltage, fast transient response and exceptional thermal package characteristics makes it ideal for portable electronics.

The MIC5320 ULDO™ is available in the thin SOT-23-6 lead package. Additional voltage options are available.

Additional Features
    • 2.3V to 5.5V input voltage range
    • Ultra-low dropout voltage ULDO: 35mV @ 150mA
    • Low cost TSOT-23-6 package
    • Independent enable pins
    • PSRR: >65dB on each LDO
    • 150mA output current per LDO
    • µCap stable with 1µF ceramic capacitor
    • Low quiescent current: 85µA per output
    • Fast turn-on time: 30µs
    • Thermal shutdown protection
    • Current limit protection
Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
150
IOUT #2
150
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
150
VIN Min (V)
2.3
VIN Max (V)
5.5
VOUT (V)
Please Contact Sales Office
Voltage Drop Typ (mV)
35
IGND Typ (µA)
85
Tol Typ %
±2
Noise (µV) rms
90
PSRR 1 kHz (dB)
65
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect
