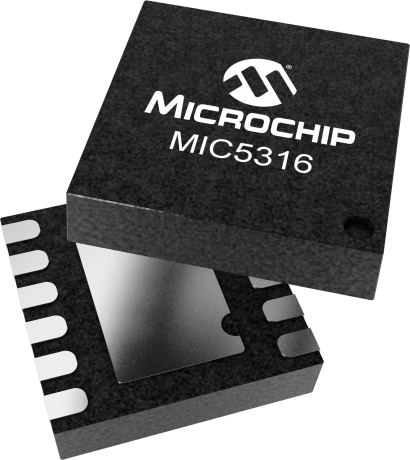

product primary image

MIC5316

Low Vin/Vout Dual 300mA LDO with Vselect + POR

Status: In Production

Features:

  • 300mA output current for each LDO
  • Dual low voltage regulator inputs: 1.7V to 5.5V
  • Low output voltage range: 0.8V to 2.0V
  • Ultra-low dropout voltage of 85mV @ 300mA
  • Voltage select function
  • Power on Reset output with adjustable delay
  • Stable with 1µF ceramic output capacitors
  • Very fast transient response
  • Thermal shutdown and current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC5316 is a high performance, dual low input voltage, low dropout regulator with Power on Reset (POR) and voltage select. Major features include two 300mA LDOs, input voltage down to 1.7V, ultra low drop out of 85mV at full load, Power on Reset, and voltage select. Each LDO has its own low voltage input for system flexibility. The low input voltages and low drop out operation provides high efficiency by reducing the input to output voltage step which minimizes the regulator power loss. Voltage select is incorporated into the second output, which reduces the output voltage to further save power while in stand-by mode. An adjustable delay time POR output is provided for the second regulator for design flexibility.

Ideal for battery operated applications; the MIC5316 offers 1% accuracy and low ground current to increase light load efficiency. The MIC5316 can also be put into a zero off-mode current state, drawing virtually no current when disabled.

Additional Features
    • 300mA output current for each LDO
    • Dual low voltage regulator inputs: 1.7V to 5.5V
    • Low output voltage range: 0.8V to 2.0V
    • Ultra-low dropout voltage of 85mV @ 300mA
    • Voltage select function
    • Power on Reset output with adjustable delay
    • Stable with 1µF ceramic output capacitors
    • Very fast transient response
    • Thermal shutdown and current limit protection



Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
300
IOUT #2
300
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
300
VIN Min (V)
1.7
VIN Max (V)
5.5
VOUT (V)
1.5/(1.2/1.0),1.5/(1.3/1.0), 1.8/(1.6/1.1), 1.8/(1.8/1.0)
Voltage Drop Typ (mV)
85
IGND Typ (µA)
7
Tol Typ %
±1
Noise (µV) rms
30
PSRR 1 kHz (dB)
65
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5316-F4CYMT-TR
0.012700
0.091958
12
UDFN
2.5x2.5x0.6mm
NiPdAu
e4
MIC5316-F5CYMT-TR
0.012700
0.091958
12
UDFN
2.5x2.5x0.6mm
NiPdAu
e4
MIC5316-GW3YMT-TR
0.012700
0.091958
12
UDFN
2.5x2.5x0.6mm
NiPdAu
e4
MIC5316-GGCYMT-TR
0.012700
0.091958
12
UDFN
2.5x2.5x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
