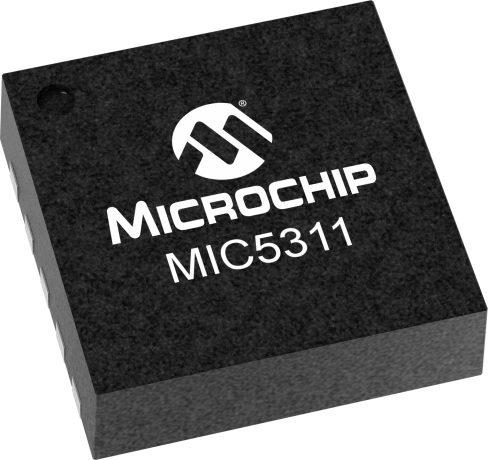

MIC5311

Portable Power LowQ, Dual uCap LDO

Status: In Production

Features:

  • Input voltage range: 2.25V to 5.5V
  • 7µA total quiescent current
  • 10mA output current capable LowQ® mode
  • Logic level control with external pin
  • Stable with ceramic output capacitor
  • 2 LDO outputs: 300mA each
  • Low dropout voltage of 60mV @ 150mA
  • Ultra-low quiescent current of 28µA total in full current mode
  • ±1.0% initial accuracy
  • ±2.0% over temperature
  • Thermal shutdown protection
  • Current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5311 is a high performance, dual µCap low dropout regulator offering ultra-low operating current and a second, even lower operating current mode, LowQ® mode, reducing operating current by 75%. Each regulator can source up to 300mA of output current maximum.

Ideal for battery operated applications, the MIC5311 offers 1% accuracy, extremely low dropout voltage (60mV @ 150mA), and low ground current (typically 28 µA total). When put into LowQ® mode, the internal current draw drops down to 7µA total. The MIC5311 also comes equipped with a TTL logic compatible enable pin that allows the part to be put into a zero off-mode current state, drawing no current when disabled.

The MIC5311 is a µCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost.

Additional Features
    • Input voltage range: 2.25V to 5.5V
    • LowQ® Mode
      • 7µA total quiescent current
      • 10mA output current capable LowQ® mode
      • Logic level control with external pin
    • Stable with ceramic output capacitor
    • 2 LDO outputs: 300mA each
    • Low dropout voltage of 60mV @ 150mA
    • Ultra-low quiescent current of 28µA total in full current mode
    • High output accuracy
      • ±1.0% initial accuracy
      • ±2.0% over temperature
    • Thermal shutdown protection
    • Current limit protection
Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
300
IOUT #2
300
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
300
VIN Min (V)
2.5
VIN Max (V)
5.5
VOUT (V)
1.8/2.8, 1.85/2.6, 2.85/2.7
Voltage Drop Typ (mV)
120
IGND Typ (µA)
28
Tol Typ %
±1
Noise (µV) rms
45
PSRR 1 kHz (dB)
65
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet

11/05/2015
341KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5311-NNYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC5311-DKYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC5311-NLYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
MIC5311-GMYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
