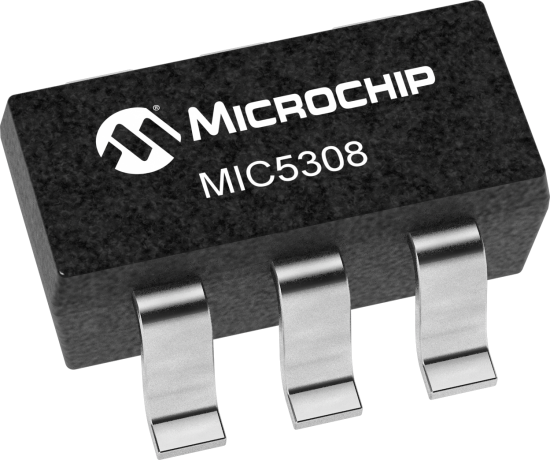

product primary image

MIC5308

Low Vin/Vout, Low Iq 150mA High PSRR ULDO

Status: In Production

Features:

  • Input voltage range: 1.6V to 5.5V
  • Guaranteed 150mA over temperature
  • Ultra-low dropout voltage: 45mV at 150mA
  • High PSRR: up to 90dB at 1kHz
  • Output voltage range: 0.8V to 2.0V
  • Very low ground current: 23µA under full load
  • Bias supply voltage range: 2.5V to 5.5V
  • Stable with 1µF ceramic output capacitor
  • 150mA maximum output current at 1.6V input voltage
  • Very fast transient response ideal for digital loads
  • Thermal shutdown and current limit protection
  • Cost effective 6-pin TSOT-23 package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5308 is a high performance, µCap low dropout regulator, offering ultra-low operating current while maintaining very fast transient response. The MIC5308 can source up to 150mA of output current and can regulate down from a low input supply voltage to increase system efficiency.

Ideal for battery-operated applications; the MIC5308 offers extremely low dropout voltage (45mV typically at 150mA) and low ground current at all load conditions (typically 23µA). The MIC5308 can also be put into a zero off-mode current state, drawing virtually no current when disabled.

Additional Features
    • Input voltage range: 1.6V to 5.5V
    • Guaranteed 150mA over temperature
    • Ultra-low dropout voltage: 45mV at 150mA
    • High PSRR: up to 90dB at 1kHz
    • Output voltage range: 0.8V to 2.0V
    • Very low ground current: 23µA under full load
    • Bias supply voltage range: 2.5V to 5.5V
    • Stable with 1µF ceramic output capacitor
    • 150mA maximum output current at 1.6V input voltage
    • Very fast transient response ideal for digital loads
    • Thermal shutdown and current limit protection
    • Cost effective 6-pin TSOT-23 package
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
150
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
150
VIN Min (V)
1.6
VIN Max (V)
5.5
VOUT (V)
1.2, 1.5, 1.8, Adj
Voltage Drop Typ (mV)
45
IGND Typ (µA)
23
Tol Typ %
±2
Noise (µV) rms
28
PSRR 1 kHz (dB)
90
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet

11/05/2015
377KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC5308-1.8YMT Evaluation Board
MIC5308-1.8YMT Evaluation Board ( MIC5308-1.8YMT-EV )
(Not Recommended for new design)

The MIC5308 is a high performance, μCap low dropout regulator, offering ultra-low operating current while maintaining very fast transient response. The MIC5308 can source up to 150mA of output current and can regulate down from a low input supply voltage to increase system efficiency.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5308-1.2YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
MIC5308YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
MIC5308-1.8YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
MIC5308-1.5YD6-TR
0.149600
6
TSOT
2.9x1.6x1.0mm
NiPdAu
e4
MIC5308YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5308-1.2YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5308-1.5YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
MIC5308-1.8YMT-TR
0.004400
0.548600
6
UDFN
1.6x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
