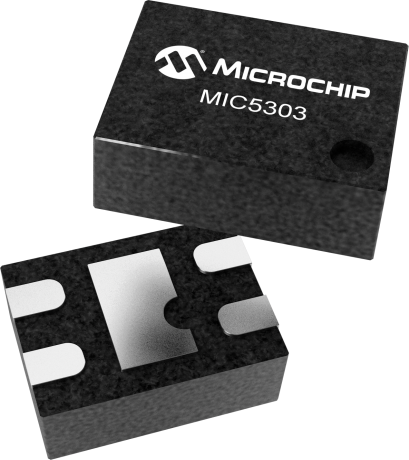

product primary image

MIC5303

Ultra-Small 300mA Single ULDO

Status: In Production

Features:

  • Low dropout voltage: 100mV at 300mA
  • Output noise: 120µVrms
  • Input voltage range: 2.3V to 5.5V
  • 300mA guaranteed output current
  • Stable with ceramic output capacitors
  • Low quiescent current: 85µA total
  • 35µs turn-on time
  • ±2% initial accuracy
  • ±3% over temperature
  • Thermal shutdown and current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5303 is an ultra-small, ultra-low dropout CMOS regulator, ULDO™ that is ideal for today's most demanding portable applications including cellular phone RF power, camera modules, imaging sensors for digital still and video cameras, PDAs, portable media players (PMPs), and PC cameras where board space is limited. It offers extremely low dropout voltage, very low output noise, and can operate from a 2.3V to 5.5V input while delivering up to 300mA.

It offers 2% initial accuracy, low ground current (typically 85µA total), and thermal and current limit protection. The MIC5303 can also be put into a zero off-mode current state, drawing no current when disabled.

Additional Features

    • Low dropout voltage: 100mV at 300mA
    • Output noise: 120µVrms
    • Input voltage range: 2.3V to 5.5V
    • 300mA guaranteed output current
    • Stable with ceramic output capacitors
    • Low quiescent current: 85µA total
    • 35µs turn-on time
    • High output accuracy:
      • ±2% initial accuracy
      • ±3% over temperature
    • Thermal shutdown and current limit protection
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
300
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
300
VIN Min (V)
2.3
VIN Max (V)
5.5
VOUT (V)
1.5, 1.8, 2.1, 2.5, 2.6, 2.8, 2.85, 2.9, 3.0, 3.3
Voltage Drop Typ (mV)
100
IGND Typ (µA)
85
Tol Typ %
±2
Noise (µV) rms
120
PSRR 1 kHz (dB)
65
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet

11/05/2015
250KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5303-3.0YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-2.5YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-2.9YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-2.1YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-2.85YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-1.5YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-1.8YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-2.8YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-1.3YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-2.6YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-4.6YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
MIC5303-3.3YMT-TR
0.002400
0.547400
4
UDFN
1.2x1.6x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
