Status: In Production

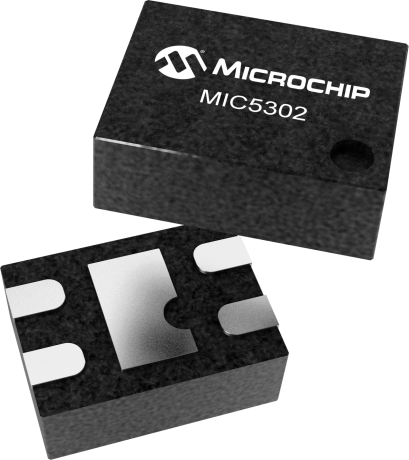

The MIC5302 is an ultra-small, ultra-low dropout CMOS regulator; a ULDO that is ideal for today's most demanding portable applications, including cellular phone RF power, camera modules, imaging sensors for digital still and video cameras, PDAs, portable media players (PMP), and PC cameras where board space is limited. It offers extremely low dropout voltage, very low output noise, and can operate from a 2.3V to 5.5V input while delivering up to 150mA.
It offers 2% initial accuracy, low ground current (typically 85µA total), and thermal and current limit protection. The MIC5302 can also be put into a zero off-mode current state, drawing no current when disabled.
Development tools data is currently unavailable.
For pricing and availability, contact Microchip Local Sales.
