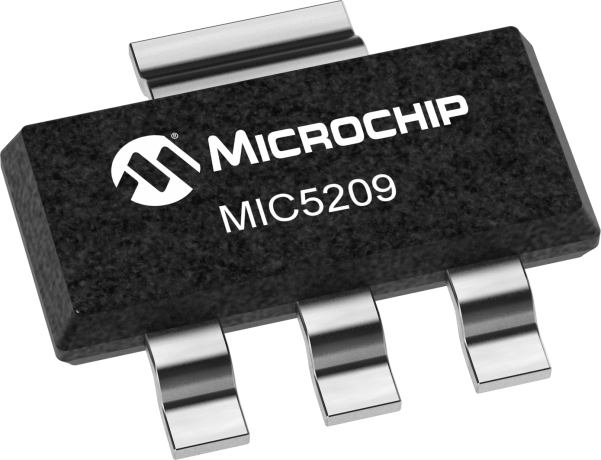

MIC5209

500mA 1% Accuracy Low Noise LDO

Status: In Production

Features:

  • Output voltage range: 1.8V to 15V
  • Meets Intel® Slot 1 and Slot 2 requirements
  • Guaranteed 500mA output over the full operating temperature range
  • Low 500mV maximum dropout voltage at full load
  • Extremely tight load and line regulation
  • Thermally efficient surface-mount package
  • Low temperature coefficient
  • Current and thermal limiting
  • Reversed battery protection
  • No-load stability
  • 1% output accuracy
  • Ultra-low noise capability in SOIC-8 and DDPAK
  • Ultra-small 3mm x 3mm DFN package
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5209 is an efficient linear voltage regulator with very low dropout voltage, typically 10mV at light loads and less than 500mV at full load, with better than 1% output voltage accuracy.

Designed especially for hand-held, battery-powered devices, the MIC5209 features low ground current to help prolong battery life. An enable/shutdown pin on SOIC-8 and DDPAK versions can further improve battery life with near-zero shutdown current.

Key features include reversed-battery protection, current limiting, overtemperature shutdown, ultra-low-noise capability (SOIC-8 and DDPAK versions), and availability in thermally efficient packaging. The MIC5209 is available in adjustable or fixed output voltages.

Additional Features
    • Output voltage range: 1.8V to 15V
    • Meets Intel® Slot 1 and Slot 2 requirements
    • Guaranteed 500mA output over the full operating temperature range
    • Low 500mV maximum dropout voltage at full load
    • Extremely tight load and line regulation
    • Thermally efficient surface-mount package
    • Low temperature coefficient
    • Current and thermal limiting
    • Reversed battery protection
    • No-load stability
    • 1% output accuracy
    • Ultra-low noise capability in SOIC-8 and DDPAK
    • Ultra-small 3mm x 3mm DFN package
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
500
VIN Min (V)
2.5
VIN Max (V)
16
VOUT (V)
1.8, 2.5, 3.0, 3.3, 3.6, 4.2, 5.0, Adj
Voltage Drop Typ (mV)
350
IGND Typ (µA)
80
Tol Typ %
±1
PSRR 1 kHz (dB)
75
Soft Start Pin
Load Dump
Rev Bat
Yes
Reverse Current Protect
