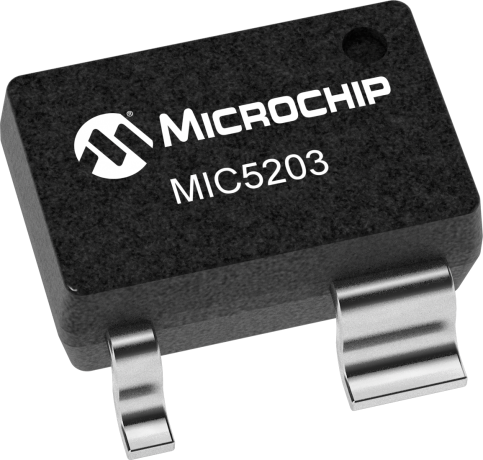

product primary image

MIC5203

uCap 80mA Low-Dropout Regulator

Status: In Production

Features:

  • Tiny 4-lead and 5-lead surface-mount packages
  • Wide selection of output voltages
  • Guaranteed 80mA output
  • Low quiescent current
  • Low dropout voltage
  • Tight load and line regulation
  • Low temperature coefficient
  • Current and thermal limiting
  • Reversed input polarity protection
  • Zero off-mode current
  • Logic-controlled shutdown
  • Stability with low-ESR ceramic capacitors
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC5203 is a µCap 80mA linear voltage regulator with very low dropout voltage (typically 20mV at light loads and 300mV at 80mA) and very low ground current (225µA at 20mA output), offering better than 3% initial accuracy with a logic-compatible enable input.

The µCap regulator design is optimized to work with low-value, low-cost ceramic capacitors. The outputs typically require only 0.47µF of output capacitance for stability.

Designed especially for handheld, battery-powered devices, the MIC5203 can be controlled by a CMOS- or TTL-compatible logic signal. When disabled, power consumption drops nearly to zero. If on-off control is not required, the enable pin may be tied to the input for 3-terminal operation. The ground current of the MIC5203 increases only slightly in dropout, further prolonging battery life. Key MIC5203 features include current limiting, over-temperature shutdown, and protection against reversed battery.

The MIC5203 is available in 2.8V, 3.0V, 3.3V, 3.6V, 3.8V, 4.0V, 4.5V, 4.75V, and 5.0V fixed voltages.

Additional Features
    • Tiny 4-lead and 5-lead surface-mount packages
    • Wide selection of output voltages
    • Guaranteed 80mA output
    • Low quiescent current
    • Low dropout voltage
    • Tight load and line regulation
    • Low temperature coefficient
    • Current and thermal limiting
    • Reversed input polarity protection
    • Zero off-mode current
    • Logic-controlled shutdown
    • Stability with low-ESR ceramic capacitors
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
80
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
80
VIN Min (V)
2.5
VIN Max (V)
16
VOUT (V)
2.6, 2.8, 3.0, 3.3, 3.6, 3.8, 4.0, 4.5, 5.0
Voltage Drop Typ (mV)
300
IGND Typ (µA)
180
Tol Typ %
±3
PSRR 1 kHz (dB)
60
Soft Start Pin
Load Dump
Rev Bat
Yes
Reverse Current Protect

Documents

Jump to:

Data Sheet

11/05/2015
260KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC5203-4.7YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-2.8YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-3.3YM5-TX
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-3.8YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-4.5YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-3.6YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-4.0YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-2.8YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-2.6YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-4.7YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-3.0YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-3.3YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-5.0YM4-TR
0.011000
0.036000
4
SOT-143
-
NiPdAu
e4
MIC5203-2.6YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-4.0YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-3.0YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-3.3YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-3.6YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-3.8YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-5.0YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
MIC5203-4.5YM5-TR
0.017400
0.049000
5
SOT-23
-
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
