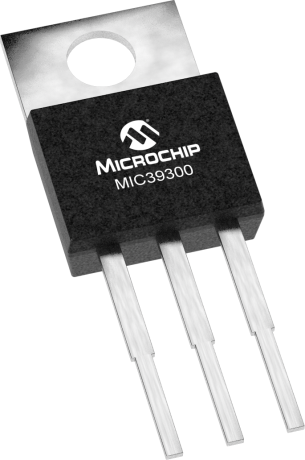

product primary image

MIC39300

3.0A 1.0% Fixed Voltage LDO

Status: In Production

Features:

  • 3.0A minimum guaranteed output current
  • 550mV maximum dropout voltage over temperature
  • Ideal for 3.0V to 2.5V conversion
  • Ideal for 2.5V to 1.8V conversion
  • 1% initial accuracy
  • Low ground current
  • Current limiting and thermal shutdown
  • Reverse battery protection
  • Reverse leakage protection
  • Fast transient response
  • TO-263 (D2Pak) and TO-220 packaging
  • TTL/CMOS compatible enable pin (MIC39301/2 only)
  • Error flag output (MIC39301 only)
  • Adjustable output (MIC39302 only)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC39300, MIC39301, and MIC39302 are 3.0A low-dropout linear voltage regulators that provide a low voltage, high-current output with a minimum of external components. Utilizing proprietary Super βeta PNP® pass element, the MIC39300/1/2 offers extremely low dropout (typically 385mV at 3.0A) and low ground current (typically 36mA at 3.0A).

The MIC39300/1/2 is ideal for PC add-in cards that need to convert from standard 3.3V to 2.5V, or 2.5V to 1.8V. A guaranteed maximum dropout voltage of 500mV over all operating conditions allows the MIC39300/1/2 to provide 2.5V from a supply as low as 3V, and 1.8V from a supply as low as 2.5V. The MIC39300/1/2 also has fast transient response for heavy switching applications. The device requires only 47µF of output capacitance to maintain stability and achieve fast transient response.

The MIC39300/1/2 is fully protected with overcurrent limiting, thermal shutdown, reverse battery protection, reverse leakage protection, and reverse lead insertion. The MIC39301 offers a TTL logic-compatible enable pin and an error flag that indicates under voltage and over current conditions. Offered in fixed voltages, the MIC39300/1 comes in the TO-220 and TO-263 (D2Pak) packages and is an ideal upgrade to older, NPN-based linear voltage regulators. The MIC39302 adjustable option allows programming the output voltage anywhere between 1.24V and 15.5V and is offered in a 5-Pin, TO-263 (D2Pak) package.

Additional Features
    • 3.0A minimum guaranteed output current
    • 550mV maximum dropout voltage over temperature
    • Ideal for 3.0V to 2.5V conversion
    • Ideal for 2.5V to 1.8V conversion
    • 1% initial accuracy
    • Low ground current
    • Current limiting and thermal shutdown
    • Reverse battery protection
    • Reverse leakage protection
    • Fast transient response
    • TO-263 (D2Pak) and TO-220 packaging
    • TTL/CMOS compatible enable pin (MIC39301/2 only)
    • Error flag output (MIC39301 only)
    • Adjustable output (MIC39302 only)
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
3000
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
3000
VIN Min (V)
2.25
VIN Max (V)
16
VOUT (V)
1.8, 2.5
Voltage Drop Typ (mV)
385
IGND Typ (µA)
10000
Tol Typ %
±1
PSRR 1 kHz (dB)
47
Soft Start Pin
Load Dump
Rev Bat
Yes
Reverse Current Protect
Yes

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC39300-2.5WU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC39300-2.5WU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC39300-1.8WU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC39300-1.8WU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC39300-1.8WT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
MIC39300-2.5WT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
