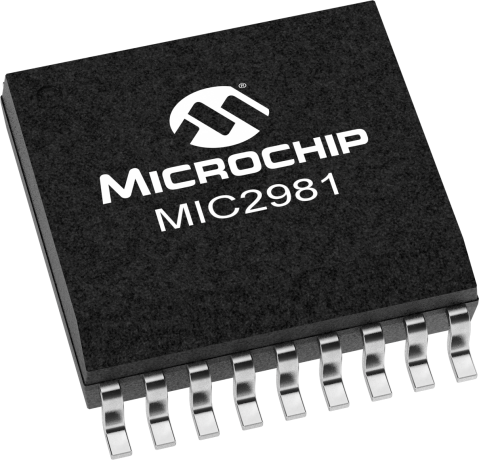

MIC2981

Hi-Voltage, Hi-Current Source Driver Array

Status: In Production

Features:

  • Output voltage to 50V
  • Output current to 500mA
  • Transient-protected outputs
  • Integral clamp diodes
  • TTL, CMOS, or PMOS compatible inputs
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MIC2981 is an 8-channel, high-voltage, high-current source driver array ideal for switching high-power loads from logic-level TTL, CMOS, or PMOS control signals. This driver can manage multiple loads of up to 50V and 500mA, limited only by package power dissipation. MIC2981 features inputs compatible with 5V TTL and 5V to 15V CMOS or PMOS logic outputs. The dual-marked device replaces either UDN2981 or UDN2982 devices. The MIC2981 is available in the 18-pin plastic DIP and 18-lead wide SOIC package. This devices operate in the industrial temperature range.

Additional Features
    • Output voltage to 50V
    • Output current to 500mA
    • Transient-protected outputs
    • Integral clamp diodes
    • TTL, CMOS, or PMOS compatible inputs





Parametrics
Name
Value
Type
Source
Output Channels
8
Vout (V) operating – Transient
50
Vout (V) Operating - Sustained
35
Iout (mA) per Channel
-500
Output Structure
Darlington Open Emitter
Input Structure
Parallel
Minimum Data Clock (MHz)
--
General Description
Hi-Voltage, Hi-Current Source Driver Array
Package
18/SOIC 300mil 18/PDIP

Documents

Jump to:

Development tools data is currently unavailable.
