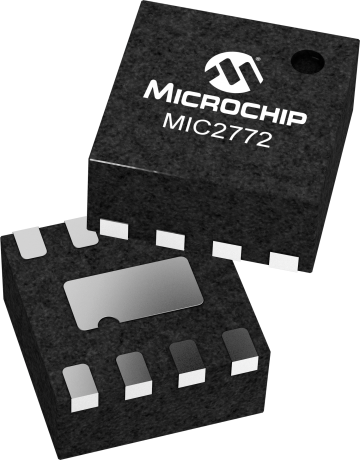

MIC2772

Dual Voltage Supervisor w/ Manual Reset & Active-Low Open-Drain Outputs

Status: In Production

Features:

  • Two independent voltage supervisors
  • Directly replaces discrete supervisors
  • Generates power-on reset pulses
  • De-bounced manual reset Inputs
  • Choice of voltage thresholds
  • 20, 140, or 1100ms reset timeouts
  • Reset output may be pulled above VCC
  • Rejects brief input transients
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC2772 is a dual power supply supervisor that provides under-voltage monitoring and power-on reset generation. It may replace two discrete voltage supervisors such as MIC1810, MIC1815, MIC809, MIC811, MIC6315, etc. The two voltage supervisors are completely independent. Each functional block features an under-voltage detector, a delay-generator, and a de-bounced manual reset input. A wide choice of voltage thresholds is available. The reset output is asserted at power-on and any time the input voltage drops below the reference voltage. It remains asserted for the chosen timeout period after the input rises back above the threshold. Reset timeouts of 20, 140, and 1100ms (minimum) are available. A reset can be generated at any time by asserting the manual reset input, /MR. This input is internally de-bounced, and the reset output will remain active for the timeout period after the release of /MR. The /MR input can also be used to daisy-chain one or more of the MIC2772’s supervisors onto existing power monitoring circuitry or other supervisors.

Additional Features
    • Two independent voltage supervisors
    • Directly replaces discrete supervisors
    • Generates power-on reset pulses
    • De-bounced manual reset Inputs
    • Choice of voltage thresholds
    • 20, 140, or 1100ms reset timeouts
    • Reset output may be pulled above VCC
    • Rejects brief input transients



    Parametrics
    Name
    Value
    Product Type
    Dual
    Manual Reset
    Yes
    Operating Temp. Range (°C)
    -40 to 85
    Vcc Range (V)
    1.0 - 5.5
    Nominal Reset Voltage (V)
    2.93, 3.08, 4.38, 4.63
    Reset Type
    Active Low
    Output
    Open-Drain
    Typical Supply Current (µA)
    10
