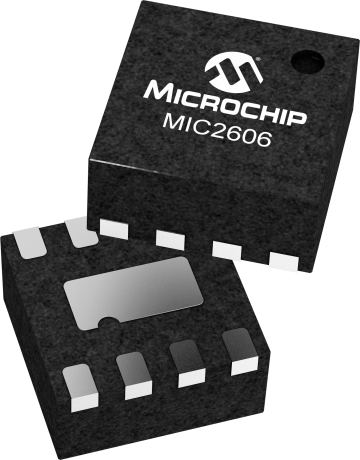

product primary image

MIC2606

2 MHz 0.8A Isw Wide Input Range Boost Regulator w/ Integrated Schottky

Status: In Production

Features:

  • Wide input voltage range: 4.5V to 20V
  • Output voltage adjustable to 40V
  • 0.5A(min) / 0.8A(typ) switch current and Schottky diode
  • MIC2605 operates at 1.2MHz
  • MIC2606 operates at 2MHz
  • Programmable soft start
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2605/6 is a 1.2MHz/2MHz, PWM DC/DC boost switching regulator. High power density is achieved with the MIC2605/6's internal 40V/0.5A switch and Schottky diode, allowing it to power large loads in a tiny footprint.

The MIC2605/6 implements constant frequency 1.2MHz/2MHz PWM current mode control. The MIC2605/6 offers internal compensation that offers excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM scheme also reduces spurious switching noise and ripple to the input power source.

The MIC2605/6 has an operating junction temperature range of -40°C to +125°C.

Additional Features
  • Wide input voltage range: 4.5V to 20V
  • Output voltage adjustable to 40V
  • 0.5A(min) / 0.8A(typ) switch current and Schottky diode
  • MIC2605 operates at 1.2MHz
  • MIC2606 operates at 2MHz
  • Programmable soft start
  • Stable with small size ceramic capacitors
  • High efficiency
  • Low input and output ripple
  • <10µA shutdown current
  • UVLO
  • Output over-voltage and over-temperature protection
  • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Up (Boost)
Input Voltage Range Min (V)
4.5
Input Voltage Range Max (V)
20
Output Voltage Range Min (V)
5
Output Voltage Range Max (V)
40
Output Current (mA) max
800
Quiescent Current (mA) typ
4.2
Switching Frequency (kHz)
2000
Operating Temp Range
-40 to 125
Vfb (V)
1.25
Duty Cycle Max (%)
80
SHUTDOWN Current (µA) (Typ)
0.08
Switch current (A) typ
0.8

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC2606YML Evaluation Board
MIC2606YML Evaluation Board ( MIC2606YML-EV )
(Not Recommended for new design)

The MIC2605/6 is a 1.2MHz/2MHz, PWM DC/DC boost switching regulator. High power density is achieved with the MIC2605/6 internal 40V/0.5A switch and 1Ω schottky diode, allowing it to power large loads in a tiny footprint.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2606YML-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
