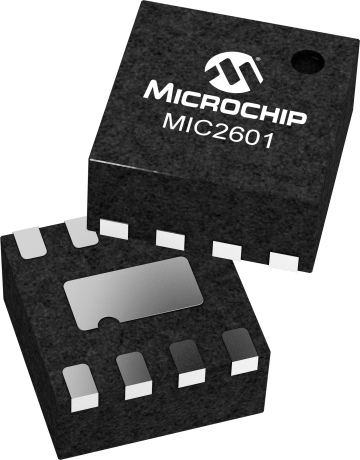

product primary image

MIC2601

1.2 MHz 1.7A Isw Wide Input Range Boost Regulator

Status: In Production

Features:

  • Wide input voltage range: 4.5V to 20V
  • Output voltage adjustable to 40V
  • 1.2A(min) / 1.7A(typ) switch current
  • MIC2601 operates at 1.2MHz
  • MIC2602 operates at 2MHz
  • Stable with small size ceramic capacitors
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2601/2 is a 1.2MHz/2MHz, PWM DC/DC boost switching regulator. High power density is achieved with the MIC2601/2's internal 40V/1.2A switch, allowing it to power large loads in a tiny footprint.

The MIC2601/2 implements constant frequency 1.2MHz/2MHz PWM current mode control. The MIC2601/2 offers internal compensation that provides excellent transient response and output regulation performance. The high frequency operation saves board space by allowing small, low-profile external components. The fixed frequency PWM scheme also reduces spurious switching noise and ripple to the input power source.

Soft start reduces in rush current and is programmable via external capacitor.

The MIC2601/2 has an operating junction temperature range of -40°C to +125°C.

Additional Features
  • Wide input voltage range: 4.5V to 20V
  • Output voltage adjustable to 40V
  • 1.2A(min) / 1.7A(typ) switch current
  • MIC2601 operates at 1.2MHz
  • MIC2602 operates at 2MHz
  • Stable with small size ceramic capacitors
  • High efficiency
  • Programmable soft start
  • <10 µA shutdown current
  • UVLO
  • Output over-voltage protection
  • Over temperature shutdown
  • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Up (Boost)
Input Voltage Range Min (V)
4.5
Input Voltage Range Max (V)
20
Output Voltage Range Min (V)
5
Output Voltage Range Max (V)
40
Output Current (mA) max
1700
Quiescent Current (mA) typ
4.2
Switching Frequency (kHz)
1200
Operating Temp Range
-40 to 125
Vfb (V)
1.26
Duty Cycle Max (%)
85
SHUTDOWN Current (µA) (Typ)
0.08
Switch current (A) typ
1.7

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC2601YML Evaluation Board
MIC2601YML Evaluation Board ( MIC2601YML-EV )

The MIC2601/2 is a 1.2MHz/2MHz, PWM DC/DC boost switching regulator. High power density is achieved with the MIC2601/2 internal 40V / 1.2A switch, allowing it to power large loads in a tiny footprint.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2601YML-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
