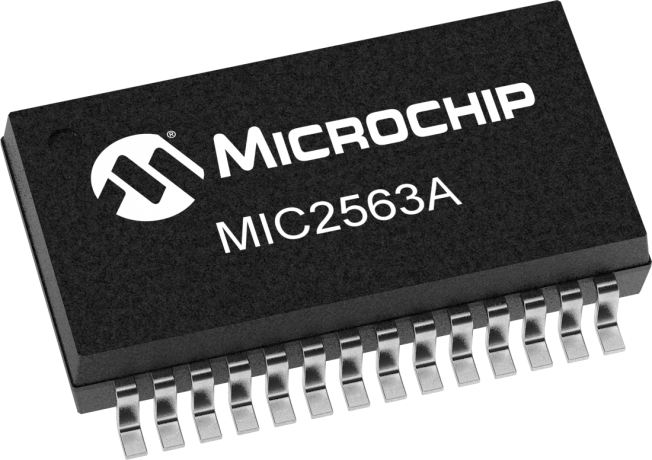

MIC2563A

Dual Slot PCMCIA/CardBus Socket Power Controller

Status: In Production

Features:

  • Single package controls two PC Card slots
  • High-efficiency, low-resistance switches require no 12V bias supply
  • No external components required
  • Output current limit and overtemperature shutdown
  • Ultra-low power consumption
  • Complete dual-slot PC Card/CardBus VCC and VPP switch matrix in a single package
  • Logic compatible with industry standard PC Card logic controllers
  • No voltage shoot-through or switching transients
  • Break-before-make switching
  • Digital selection of VCC and VPP voltages
  • Over 1A VCC output current for each section
  • Over 250mA VPP output current for each section
  • Lead-free 28-pin SSOP package
  • UL recognized, file #179633
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC2563A dual-slot PCMCIA (Personal Computer Memory Card International Association) and CardBus power controller handles all PC Card slot power supply pins, both VCC and VPP. The MIC2563A switches between the three VCC voltages (0V, 3.3V and 5.0V) and the VPP voltages (OFF, 0V, 3.3V, 5V or 12.0V) required by PC Cards. The MIC2563A switches voltages from the system power supply to VCC and VPP. Output voltage is selected by two digital inputs each and output current ranges up to 1A for VCC and 250mA for VPP. The MIC2563A provides power management capability controlled by the PC Card logic controller. Voltage rise and fall times are well controlled. Medium current VPP and high current VCC output switches are self-biasing: no +12V supply is required for 3.3V or 5V output. The MIC2563A is designed for efficient operation. In standby (sleep) mode, the device draws very little quiescent current, typically 0.3µA. The device and PCMCIA port is protected by current limiting and overtemperature shutdown. Full crossconduction lockout protects the system power supplies during switching operations. The MIC2563A is an improved version of the MIC2563, offering lower on-resistances and a VCC pull-down clamp in the OFF mode. It is available in a standard 28-pin SSOP, as well as an environmentally friendly (lead-free) 28-pin SSOP.

Additional Features
    • Single package controls two PC Card slots
    • High-efficiency, low-resistance switches require no 12V bias supply
    • No external components required
    • Output current limit and overtemperature shutdown
    • Ultra-low power consumption
    • Complete dual-slot PC Card/CardBus VCC and VPP switch matrix in a single package
    • Logic compatible with industry standard PC Card logic controllers
    • No voltage shoot-through or switching transients
    • Break-before-make switching
    • Digital selection of VCC and VPP voltages
    • Over 1A VCC output current for each section
    • Over 250mA VPP output current for each section
    • Lead-free 28-pin SSOP package
    • UL recognized, file #179633
Parametrics
Name
Value
Product Type
PC Card/PCMCIA/CardBus Power Distribution Switches
Current Limited
Yes
Θja (C/W)
84
Thermal Shutdown
Yes
UL Approved
Yes
Slots Supported
Dual
VCC3 On-Resistance (mΩ)
100
VCC5 On-Resistance (mΩ)
70
VPP On-Resistance (mΩ)
600
Charge Pump
Yes

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2563A-0YSM
0.229200
0.489362
28
SSOP
.209in
Matte Tin
e3
MIC2563A-0YSM-TR
0.229200
0.333333
28
SSOP
.209in
Matte Tin
e3
MIC2563A-1YSM
0.229200
0.489362
28
SSOP
.209in
Matte Tin
e3
MIC2563A-1YSM-TR
0.229200
0.333333
28
SSOP
.209in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
