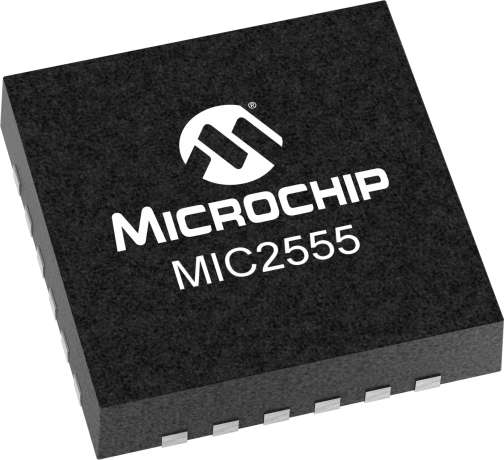

product primary image

MIC2555

Universal Serial Bus On-The-Go Transceiver

Status: Not Recommended for new designs

Features:

  • Complies with USB-IF USB standard 2.0 and OTG supplement Revision 1.0a.
  • Provides signaling and control logic for SRP and HNP, enabling USB Dual-role device operation.
  • Designed for Full-speed and Low-speed USB communications.
  • I2C controller interface.
  • Offers 3 modes of operation:
  • USB
  • UART
  • Audio
  • Operates with VLOGIC of 1.6V - 4.5V, assuring compatibility with low voltage ASICs.
  • Tri-level ID detection for recognition of USB and non-USB devices.
  • Supports USB/Car Kit audio interface.
  • Allows Single-ended and Differential Logic I/O.
  • Integrated charge pump for VBUS supply.
  • On-chip pull-up, pull-down resistors minimize external component count.
  • Suspend and Power-down modes for power conservation.
  • Operates over the full Industrial Temperature range: - 40°C to +85°C.
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

**NOT RECOMMENDED FOR NEW DESIGNS*** MIC2555 is a USB On-The-Go (OTG) transceiver designed to enable intelligent self-powered devices to communicate on a peer-to-peer basis with other USB and USB OTG enabled devices. Designed to perform as a PHY for USB Serial Interface Engines (SIE), MIC2555 is compatible with a wide variety of stand-alone OTG SIE chips, OTG IP cores (used in ASIC and COT designs), and Application Specific Standard Products (ASSPs). MIC2555 is fully compliant to USB-IF's Universal Serial Bus Specification 2.0 and the On-The-Go Supplement Rev 1.0a, for Low speed and Full speed operation, and allows dual-role device (DRD) operation via an I2C based controller interface. The controller's robust register set permits full control over bus and interface activity for transacting Session Request Protocol (SRP) and Host Negation Protocol (HNP) sequences. Messaging between Host and Target devices can utilize either USB or UART signaling methods. Additionally, the MIC2555 permits audio signaling on its D+, D- and ID lines in support of analog car kit applications. USB communication is complemented with on-chip D+, Dpull- up/pull-down resistors, an integrated charge pump and low dropout voltage regulators to provide stable internal supply voltages and to supply VBUS power when operating as an A-device. Logic input levels spanning 1.6V to 4.5V ensure compatibility with current and future generations of process technology.

Please consider this device MCP2221A

Additional Features
    • Complies with USB-IF USB standard 2.0 and OTG supplement Revision 1.0a.
    • Provides signaling and control logic for SRP and HNP, enabling USB Dual-role device operation.
    • Designed for Full-speed and Low-speed USB communications.
    • I2C controller interface.
    • Offers 3 modes of operation:
      • USB
      • UART
      • Audio
    • Operates with VLOGIC of 1.6V - 4.5V, assuring compatibility with low voltage ASICs.
    • Tri-level ID detection for recognition of USB and non-USB devices.
    • Supports USB/Car Kit audio interface.
    • Allows Single-ended and Differential Logic I/O.
    • Integrated charge pump for VBUS supply.
    • On-chip pull-up, pull-down resistors minimize external component count.
    • Suspend and Power-down modes for power conservation.
    • Operates over the full Industrial Temperature range: - 40°C to +85°C.
Parametrics
Name
Value
Product Type
Universal Serial Bus Transceiver
Θja (C/W)
49
supports Speeds
1.5Mbps (low) and 12Mbps (full)

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2555-1YML-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
MIC2555-0YML-TR
0.042200
0.204000
24
VQFN
4x4x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
