MIC23156

3MHz 1.5A HyperLight Load® Synchronous Buck Regulator w/I2C Control

Status: In Production

Features:

  • Input voltage: 2.7V to 5.5V
  • Up to 1.5A output current
  • 1MHz I2C-controlled adjustable output: VOUT = 0.7 to 2.4V in 10mV steps
  • High output voltage accuracy (±1.5% over temperature)
  • Fast pin selectable output voltage
  • Programmable soft-start using external capacitor
  • Ultra-low quiescent current of 30µA when not switching
  • Thermal-shutdown and current-limit protection
  • Safe startup in to pre-biased output
  • Stable with 1µH output inductor and 2.2µF ceramic capacitor
  • Up to 93% peak efficiency
  • Junction temperature range of -40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC23156 is a high-efficiency 1.5A synchronous buck regulator with HyperLight Load® mode and dynamic voltage scaling control through I2C. HyperLight Load provides very high efficiency at light loads and ultra-fast transient response. The ability to dynamically change the output voltage and maintain high output voltage accuracy make the MIC23156 perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is very low output ripple voltage throughout the entire load range with the use of small output capacitors. Fast mode plus I2C provides output voltage and chip enable/disable control from standard I2C bus with I2C clock rates of 100kHz, 400kHz, and 1MHz.

The MIC23156 is designed for use with 1µH, and an output capacitor as small as 2.2µF that enables a total solution size, less than 1mm in height.

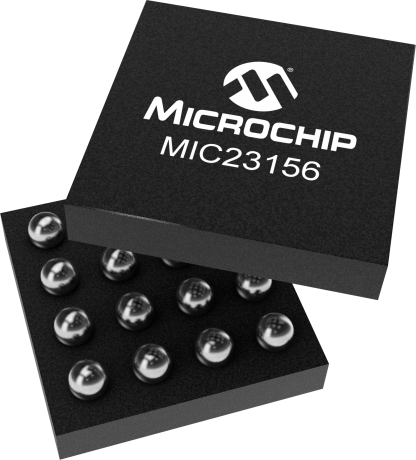

The MIC23156 is available in both 16-ball, 0.4mm Pitch, 1.81mm x 1.71mm wafer level chip scale (WLCSP) with an operating junction temperature range of -40°C to +125°C.

Additional Features
    • Input voltage: 2.7V to 5.5V
    • Up to 1.5A output current
    • 1MHz I2C-controlled adjustable output: VOUT = 0.7 to 2.4V in 10mV steps
    • High output voltage accuracy (±1.5% over temperature)
    • Fast pin selectable output voltage
    • Programmable soft-start using external capacitor
    • Ultra-low quiescent current of 30µA when not switching
    • Thermal-shutdown and current-limit protection
    • Safe startup in to pre-biased output
    • Stable with 1µH output inductor and 2.2µF ceramic capacitor
    • Up to 93% peak efficiency
    • Junction temperature range of -40°C to +125°C
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
1
Input Voltage Range Min (V)
2.7
Input Voltage Range Max (V)
5.5
Output Voltage Range Min (V)
0.7
Output Voltage Range Max (V)
2.4
Output Current (mA) max
1500
Quiescent Current (mA) typ
0.03
Switching Frequency (kHz)
3000
Synchronous Rectifier
Yes
Operating Temp Range
-40 to 125
Duty Cycle Max (%)
80
SHUTDOWN Current (µA) (Typ)
0.1
Light Load Efficiency Mode
Yes

Documents

Jump to:

Software

05/15/2019
2421KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC23156 1.5A 3MHz Sync Buck Reg EVB
MIC23156 1.5A 3MHz Sync Buck Reg EVB ( ADM00856 )

The MIC23156 is a high-efficiency 1.5A synchronous buck regulator with HyperLight Load® mode and dynamic voltage scaling control through I2C. HyperLight Load provides very high efficiency at light loads and ultra-fast transient response. The ability to dynamically change the output voltage and maintain high output voltage accuracy make the MIC23156 perfectly suited for supplying processor core...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC23156-0YCS-TR
0.031000
16
WLCSP
1.8x1.7x0.67mm
SAC
e8
MIC23156-2YCS-TR
0.031000
16
WLCSP
1.8x1.7x0.67mm
SAC
e8
MIC23156-2YML-T5
0.723350
17
VQFN
2.5x2.8x0.9mm
NiPdAu
e4
MIC23156-2YML-TR
0.723350
17
VQFN
2.5x2.8x0.9mm
NiPdAu
e4
MIC23156-0YML-TR
0.723350
17
VQFN
2.5x2.8x0.9mm
NiPdAu
e4
MIC23156-0YML-T5
0.723350
17
VQFN
2.5x2.8x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
