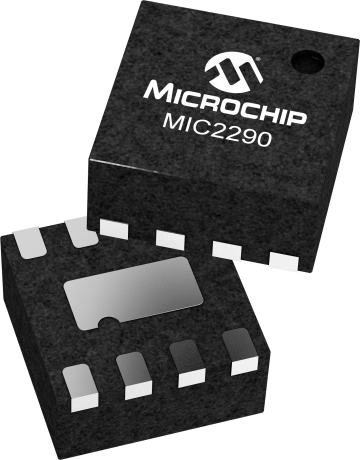

product primary image

MIC2290

1.2MHz 750mA Isw PWM Boost Regulator w/ Internal Schottky

Status: In Production

Features:

  • Internal Schottky diode
  • 2.5V to 10V input voltage
  • Output voltage adjustable to 34V
  • Over 500mA switch current
  • 1.2MHz PWM operation
  • Stable with ceramic capacitors
  • <1% line and load regulation
  • Low input and output ripple
  • <1µA shutdown current
  • UVLO
  • Output overvoltage protection
  • Over temperature protection
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2290 is a 1.2MHz , PWM, boost-switching regulator. The MIC2290 features an internal Schottky diode that reduces circuit board area and total solution cost. High power density is achieved with the MIC2290's internal 34V/0.5A switch, allowing it to power large loads in a tiny footprint. The MIC2290 implements a constant frequency 1.2MHz PWM control scheme. The high frequency operation saves board space by reducing external component sizes. The fixed frequency PWM topology also reduces switching noise and ripple to the input power source. The MIC2290's wide 2.5V to 10V input voltage allows direct operation from 3- to 4-cell NiCad/NiMH/Alkaline batteries, 1- and 2-cell Li-Ion batteries, as well as fixed 3.3V and 5V systems.

Additional Features
    • Internal Schottky diode
    • 2.5V to 10V input voltage
    • Output voltage adjustable to 34V
    • Over 500mA switch current
    • 1.2MHz PWM operation
    • Stable with ceramic capacitors
    • <1% line and load regulation
    • Low input and output ripple
    • <1µA shutdown current
    • UVLO
    • Output overvoltage protection
    • Over temperature protection
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Up (Boost)
Input Voltage Range Min (V)
2.5
Input Voltage Range Max (V)
10
Output Voltage Range Min (V)
3
Output Voltage Range Max (V)
34
Output Current (mA) max
1000
Quiescent Current (mA) typ
2.5
Switching Frequency (kHz)
1200
Operating Temp Range
-40 to 125
Vfb (V)
1.24
Duty Cycle Max (%)
85
SHUTDOWN Current (µA) (Typ)
0.2
Switch current (A) typ
0.75
Alternative Topology
SEPIC, Flyback

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2290YML-TR
0.010900
0.339227
8
VDFN
2x2x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
