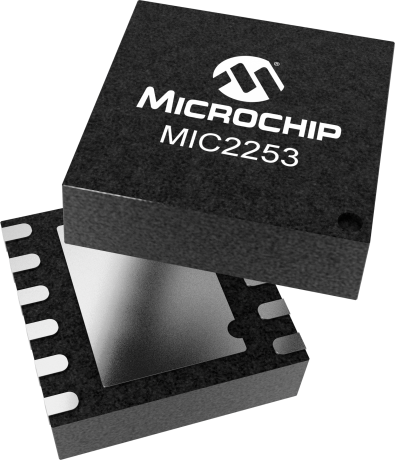

product primary image

MIC2253

3.5A 1MHz High Efficiency Boost Regulator w/OVP & Softstart

Status: In Production

Features:

  • 3.5A minimum switch current
  • 1.245V ±3% feedback voltage
  • 2.5V to 10V input voltage
  • Output over-voltage protection (OVP)
  • Externally programmable soft-start
  • Output voltage up to 30V (max)
  • Fixed 1MHz operation
  • <1% line regulation
  • 0.1µA shutdown current
  • Over temperature protection
  • Under-voltage lockout (UVLO)
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2253 is a high power density 1MHz PWM DC/DC boost regulator. The 3.5A minimum switch current limit combined with a 1MHz switching frequency allows the MIC2253 to use smaller inductors and deliver high power in a tiny solution size. The 2.5V to 10V input voltage range of MIC2253 allows direct operation from 1- and 2-cell Li-Ion as well as 3- to 4-cell NiCad, NiMH, Alkaline, or lithium batteries. Maximum battery life is assured with a low 0.1µA shutdown current. To prevent a high inrush current, a minimum 1ms soft-start period is set by default and the MIC2253 has the ability to extend the soft-start period with an external capacitor.

Additional Features
    • 3.5A minimum switch current
    • 1.245V ±3% feedback voltage
    • 2.5V to 10V input voltage
    • Output over-voltage protection (OVP)
    • Externally programmable soft-start
    • Output voltage up to 30V (max)
    • Fixed 1MHz operation
    • <1% line regulation
    • 0.1µA shutdown current
    • Over temperature protection
    • Under-voltage lockout (UVLO)
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Up (Boost)
Input Voltage Range Min (V)
2.5
Input Voltage Range Max (V)
10
Output Voltage Range Min (V)
3
Output Voltage Range Max (V)
30
Output Current (mA) max
4000
Quiescent Current (mA) typ
15
Switching Frequency (kHz)
1000
Operating Temp Range
-40 to 125
Vfb (V)
1.245
Duty Cycle Max (%)
90
SHUTDOWN Current (µA) (Typ)
0.1
Switch current (A) typ
3.5

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MIC2253 3.5A 1MHz Boost Reg Eval Board
MIC2253 3.5A 1MHz Boost Reg Eval Board ( ADM00891 )

MIC2253 Evaluation Board was developed to evaluate the capabilities of the MIC2253 high-efficiency 3.5A switch current limit integrated switch, non-synchronous boost (step-up) regulator. The MIC2253 achieves over 90% efficiency while still switching at 1MHz over a broad load range.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2253-06YML-TR
0.023840
0.644302
12
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
