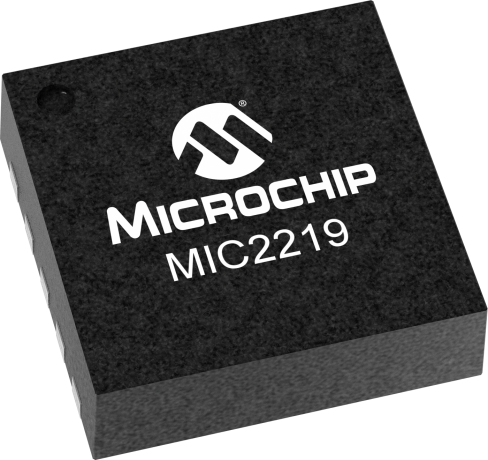

product primary image

MIC2219

Dynamically Adjustable Dual 150mA/300mA uCap

Status: In Production

Features:

  • Input voltage range: 2.25V to 5.5V
  • Stable with ceramic output capacitor
  • Output 1: 150mA output current
  • Output 2: 300mA output current
  • Feedback pins externally accessible
  • Low dropout voltage of 80mV @ 100mA
  • Ultra-low quiescent current of 48µA total (24µA/LDO)
  • ±1.0% initial accuracy
  • ±2.0% over temperature
  • Thermal shutdown protection
  • Current limit protection
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2219 is a dual µCap low dropout regulator. The first regulator is capable of sourcing 150mA, while the second regulator can source up to 300mA.

Ideal for battery operated applications, the MIC2219 offers 1% accuracy, extremely low dropout voltage (80mV @ 100mA), and extremely low ground current, only 48µA total. Equipped with TTL logic compatible enable pins, the MIC2219 can be put into a zero off-mode current state, drawing no current when disabled. Separate enable pins allow individual control of each output voltage.

The additional feature incorporated in the MIC2219 is bringing out the feedback nodes to two external pins, allowing for dynamic adjustment of the LDO output voltages.

The MIC2219 is a µCap design, operating with very small ceramic output capacitors for stability, reducing required board space and component cost.

Additional Features
    • Input voltage range: 2.25V to 5.5V
    • Stable with ceramic output capacitor
    • 2 LDO outputs
      • Output 1: 150mA output current
      • Output 2: 300mA output current
    • Feedback pins externally accessible
    • Low dropout voltage of 80mV @ 100mA
    • Ultra-low quiescent current of 48µA total (24µA/LDO)
    • High output accuracy:
      • ±1.0% initial accuracy
      • ±2.0% over temperature
    • Thermal shutdown protection
    • Current limit protection



Parametrics
Name
Value
Product Type
Dual LDOs
# of Out
2
IOUT #1
150
IOUT #2
300
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
150, 300
VIN Min (V)
2.25
VIN Max (V)
5.5
VOUT (V)
3.0/3.3
Voltage Drop Typ (mV)
240
IGND Typ (µA)
48
Tol Typ %
±1
Noise (µV) rms
30
PSRR 1 kHz (dB)
60
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2219-PSYML-TR
0.022700
0.643702
10
VDFN
3x3x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
